IMG-Stage Line | Monacor STA-1508 Multichannel PA amplifier

Name: IMG-Stage Line | Monacor STA-1508 Multichannel PA amplifier
Brand: IMG-Stage Line
SKU: 504
Price: 869.99 EUR
Availability: InStock

IMG-Stage Line STA-1508 Multichannel PA amplifier - Studio & Broadcast Solutions

View larger

€ 869,99

Volume discounts

Quantity	Discount	You Save
2	2%	Up to € 34,80
4	4%	Up to € 139,20
6	6%	Up to € 313,20
8	8%	Up to € 556,79
10	10%	Up to € 869,99

Quantity

Brand : IMG-Stage Line

Model : STA-1508

Condition : New

Category : Stereo PA amplifiers

STA-1508
Number: 24.4300
Multi-channel PA amplifiers, with integrated limiter.
STA-1508 = 8 channels
STA-1506 = 6 channels
STA-1504 = 4 channels

Print Product Page

Product information

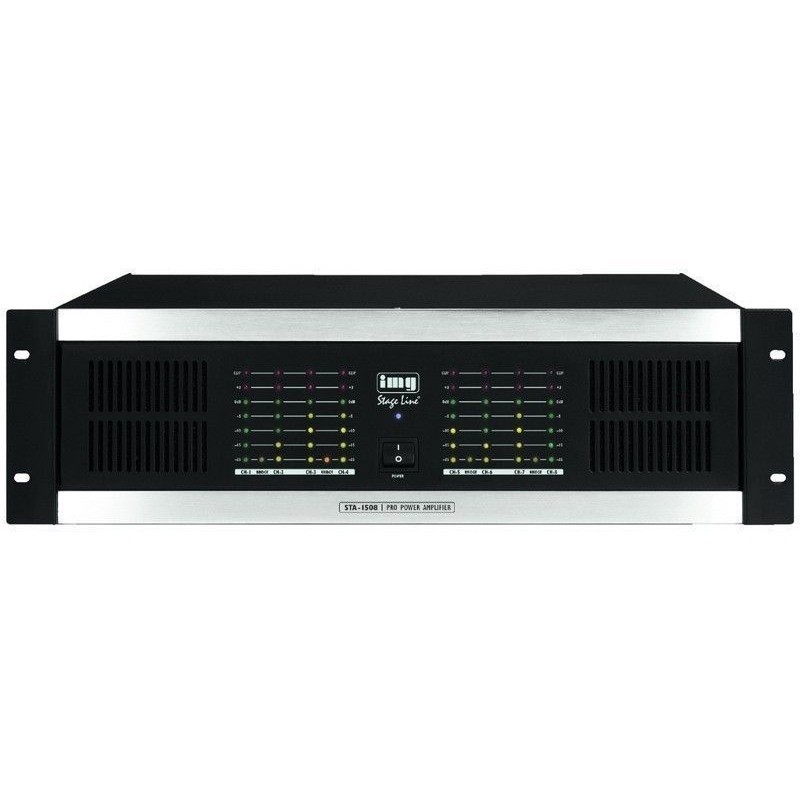

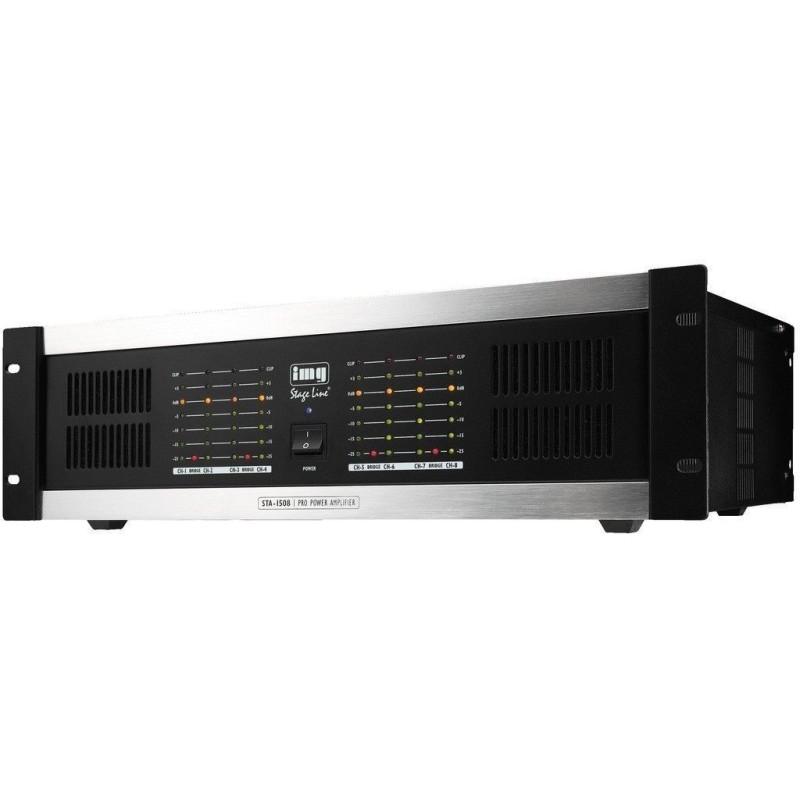

IMG-Stage Line STA-1508

Multichannel PA amplifiers with integrated limiter

STA-1508 = 8 channels

Balanced inputs
High-pass filter, low-pass filter can be switched on additionally for each channel
Level adjustment on the rear, protected against tampering
8Ω bridge operation possible
LED VU meter and LED indication for overload (Clip) for each channel
Soft start
Groundlift switch
Speaker switch-on delay
Fan-cooling
Protected against short circuit, overheating and DC voltage overlay at the outputs

Technical Facts Amplifiers

Stereo 4Ω8 x 160WRMS
Stereo 8Ω8 x 100WRMS
8Ω bridge operation4 x 320WRMS
Max. power1,800WMAX
Inputs 0.7V/20kΩ
Frequency range12-60,000Hz/-1.5dB S/N ratio > 80dB
Crosstalk attenuation> 60dB THD < 0.1%
Power supply 230V?/50Hz/2,400VA
Admiss. ambient temp. 0-40 ?C
Dimensions482x132x310mm, 3RS
Weight 19kg

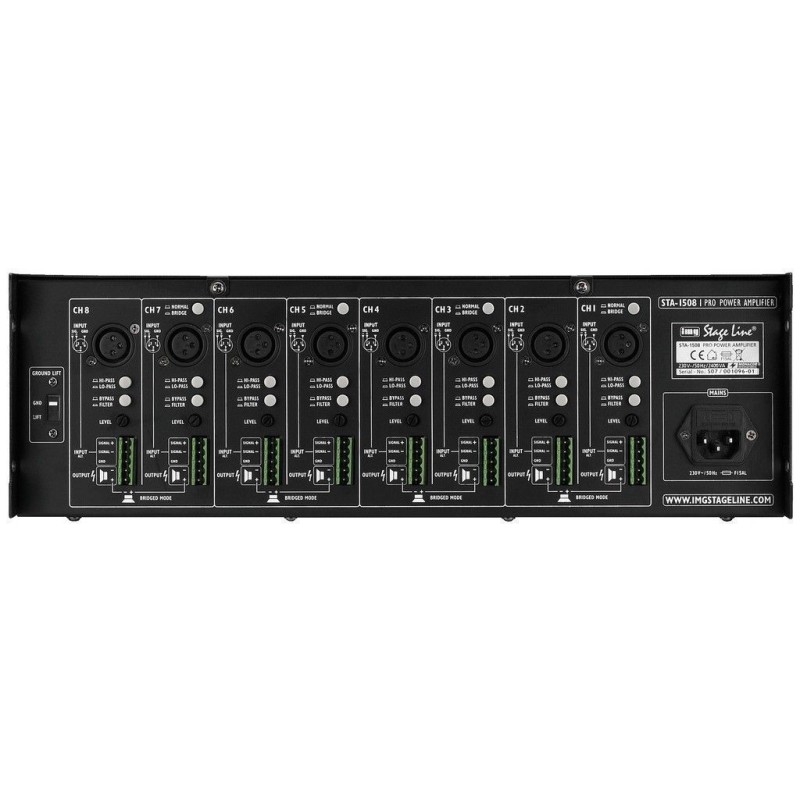

Connections 8 x XLR, bal. 8 x screw terminal
