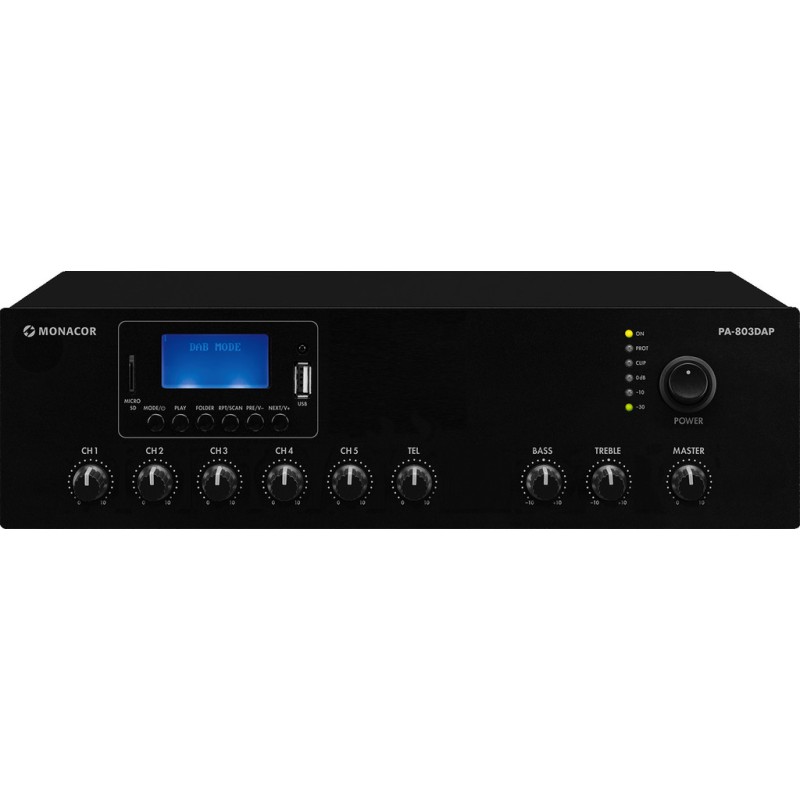

Monacor PA-803DAP 30W Amplifier

Monacor PA-803DAP 30W Amplifier - Stereo PA amplifiers View larger
Previous Next

: Monacor

: PA-803DAP

: New

: Stereo PA amplifiers

: Monacor PA-803DAP 30W Amplifier

Monacor PA-803DAP 30W Mono class D PA mixing amplifier, with integrated MP3 player, FM/DAB+ tuner and Bluetooth.

By buying this product you can collect up to 15 loyalty points. Your cart will total 15 loyalty points that can be converted into a voucher of € 3,00.


€ 309,99

Quantity Discount You Save
2 2% Up to € 12,40
4 4% Up to € 49,60
6 6% Up to € 111,60
8 8% Up to € 198,39
10 10% Up to € 309,99

Product information

Monacor PA-803DAP 30W Mono class D PA mixing amplifier, with integrated MP3 player, FM/DAB+ tuner and Bluetooth.

  • 1 x 30 W
  • Class D concept with high efficiency to cut energy costs
  • Silent operation due to fanless cooling concept
  • Bluetooth version 4.2
  • MP3 player with USB/SD interface, FM/DAB+ radio, LED display, infrared remote control
  • Reception of interference-free 'digital radio' (DAB+)
  • 1 balanced XLR microphone input with 48 V phantom power and priority selection for announcements
  • 2 unbalanced inputs, switchable mic/line
  • 2 unbalanced line inputs
  • 1 TEL input
  • 1 Music-On-Hold output (MOH)
  • Speaker outputs via screw contacts
  • Mute function via screw contact
  • 2 line outputs
  • Input level control and output level control
  • 2-way tone control for the output
  • LEDs for indicating operation, clipping, protect and signal level



SPECIFICATIONS

Power rating 30 W
Channels 1
Zones 1
Inputs 4.5 mV/600 Ω (channel 1),

120 mV (channels 2-3),

60 mV (channels 4-5)

90 mV (tel.)
Frequency range 60-15,000 Hz
Equalizer bass yes
Equalizer treble yes
S/N ratio 72 dB (mic, channels 1-3)

85 dB (line, channels 2-5)
THD < 0.5%
Phantom power 48 V
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 100 VA
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) 2.5 A
Admiss. ambient temp. 0-40 °C
Width 320 mm
Height 95 mm
Depth 245 mm
Weight 3.95 kg

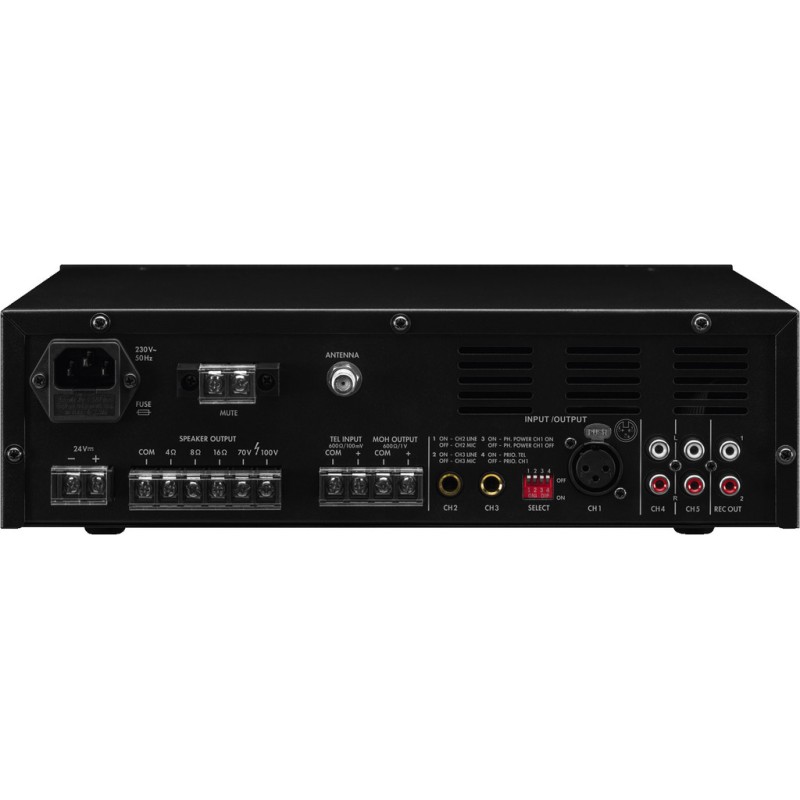

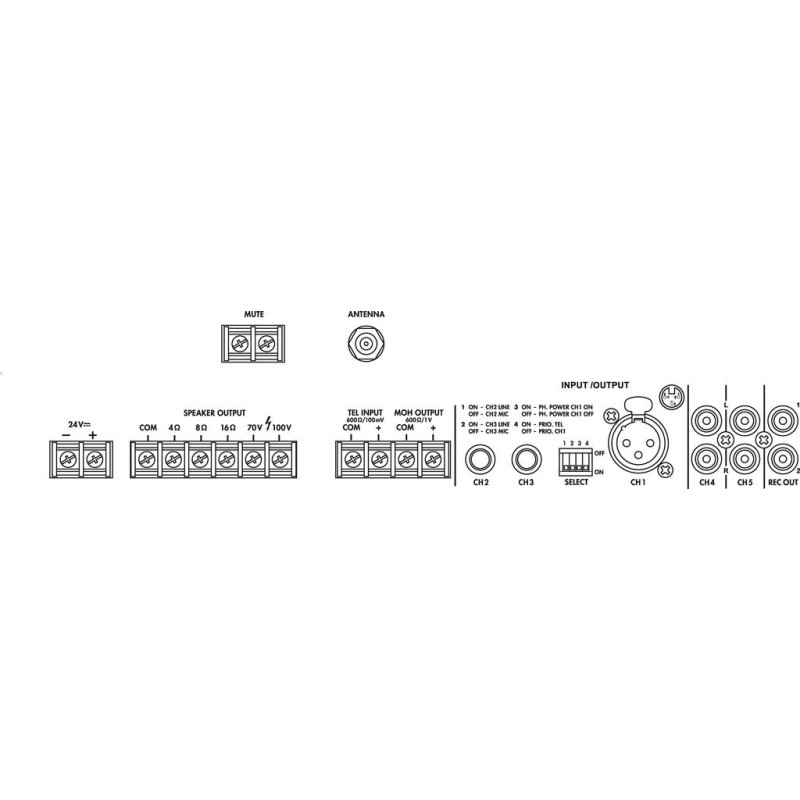

Connections 1 x XLR (channel 1),

2 x 6.3 mm jack (channels 2-3),

2 x RCA L/R (channels 4-5),

2 x RCA (record out),

1 x F jack (FM/DAB+),

screw contacts (tel. input),

screw contacts (MOH),

screw contacts ( DC 24 V),

screw contact
Packing dimensions (W x H x L) 0.39 x 0.16 x 0.31 m
Gross weight 4.33 kg
Net weight 3.74 kg
