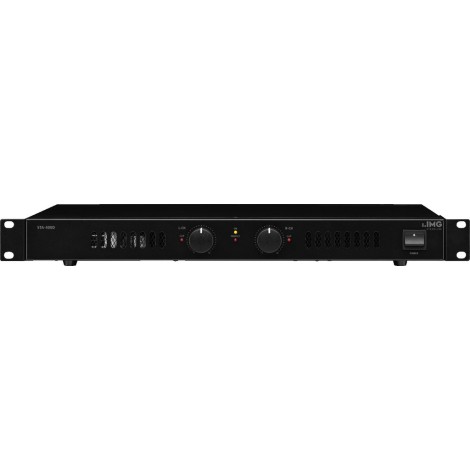

Monacor STA-400D class D PA-amplifier

Monacor STA-400D Class D PA-amplifier - Monacor versterkers View larger

: IMG-Stage Line

: STA-400D

: New

: Stereo PA amplifiers

: Monacor STA-400D class D PA-amplifier

Monacor STA-400D. The new generation of class D PA amplifier  impresses with a high power capability and high energy efficiency.

By buying this product you can collect up to 24 loyalty points. Your cart will total 24 loyalty points that can be converted into a voucher of € 4,80.


€ 484,99

Quantity Discount You Save
2 2% Up to € 19,40
4 4% Up to € 77,60
6 6% Up to € 174,60
8 8% Up to € 310,39
10 10% Up to € 484,99

Product information

Monacor STA-400D. The new generation of class D PA amplifier  impresses with a high power capability and high energy efficiency.

Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.
Stereo class D PA amplifier
  • Class D concept with power amplifier modules from HYPEX
  • 482 mm (19") rack installation, 1 RS, with supplied mounting brackets
  • Silent operation due to temperature-controlled fans
  • Lightweight design due to compact switch-mode power supply
  • Energy-efficient concept due to a high efficiency
  • Powerful bass reproduction due to large buffer capacitors (high power reserves)
  • 2 level controls
  • Protected against short circuit and overtemperature
  • LEDs for indicating power, overload (clip) and protect
  • Super slimline design
  • NEUTRIK SPEAKON connections
Peak output power 700 W
Power rating 540 W
Power rating at 4 Ω 2 x 270 W
Power rating at 8 Ω 2 x 180 W
Channels 2
Inputs 1 V/10 kΩ (XLR, bal.),

1 V/4.7 kΩ (RCA)
Frequency range 20-20,000 Hz
Integrated limiter no
S/N ratio > 110 dB(A)
THD < 0.02%
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 600 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 52 mm
Depth 277 mm
Rack units, RU 1
Weight 3.5 kg

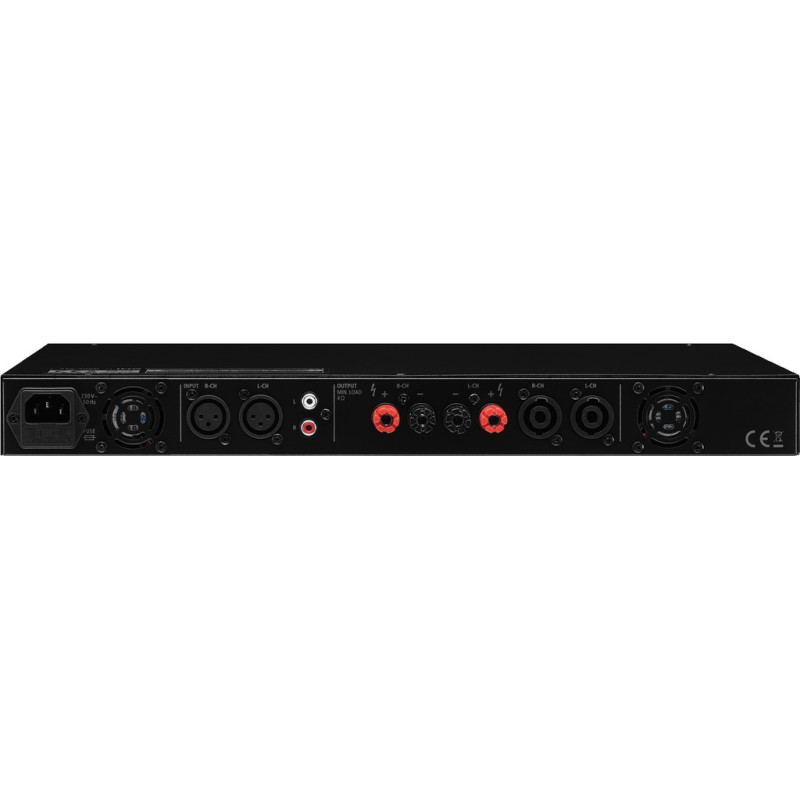

Connections 1 x 3-pole XLR L/R

1 x RCA L/R

1 x NEUTRIK SPEAKON L/R

2 x pair of screw terminals
Packing dimensions (W x H x L) 0.32 x 0.095 x 0.53 m
Gross weight 4.31 kg
Net weight 3.56 kg
