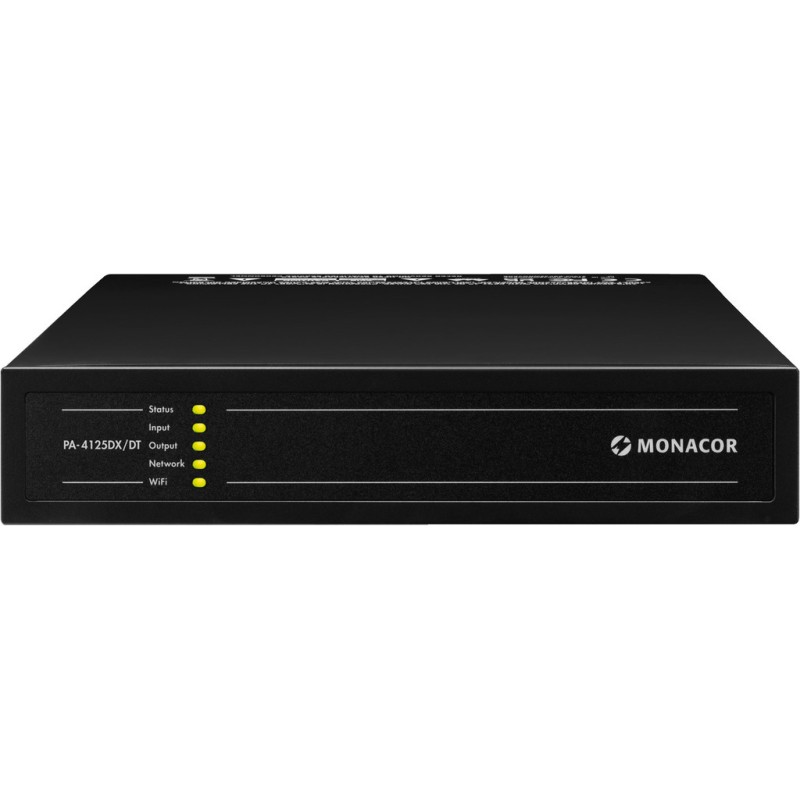

The MONACOR PA-4125DX/DT is an advanced 4-zone multi-functional amplifier featuring Class-D technology and DSP control. With its Dante® interface, it ensures low-latency, high-precision audio transmission over IP networks without the need for complex cabling. It delivers 4 x 125 W (4/8 Ω) or 2 x 250 W (100 V), making it ideal for professional audio installations.

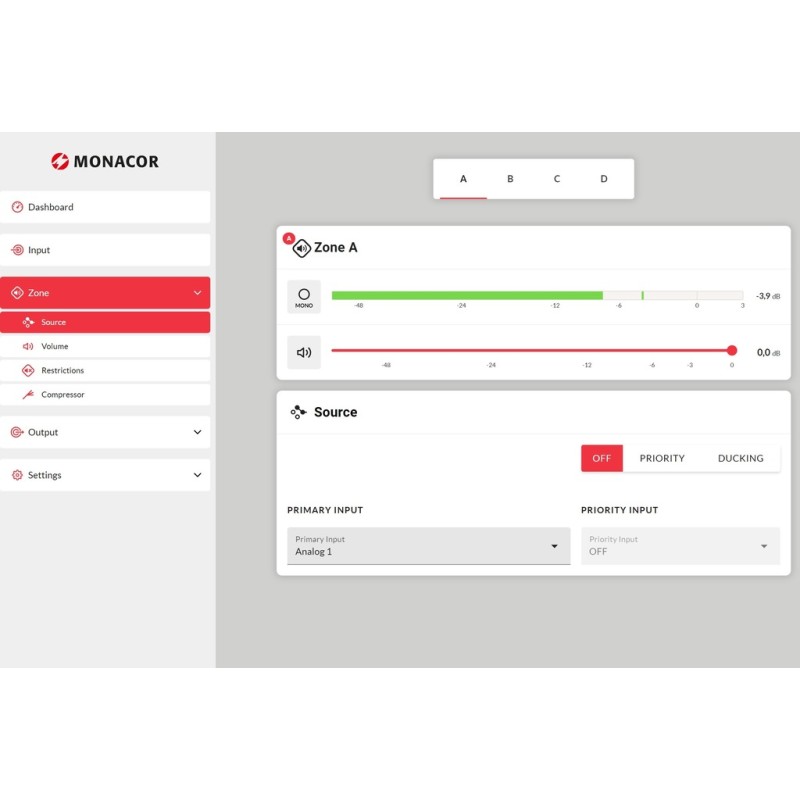

A user-friendly HTML5 interface allows easy configuration via PC, Mac, iOS, or Android. Advanced DSP features include parametric EQ, high-pass/low-pass filters, adjustable compressor/limiter, and delay settings, ensuring optimal audio quality.
The amplifier supports multiple analog and digital inputs, GPIO interfaces for remote volume control, and a Dante® network connection. Safety features such as short circuit, overvoltage, and overtemperature protection ensure reliable operation.
The PA-4125DX/DT is the perfect solution for multi-room PA systems, conference rooms, hotels, and event halls requiring powerful, flexible, and network-ready audio solutions.
Technical Specifications:
- Type: 4-zone amplifier with Dante®
- Power Output:
- 4 x 125 W (4/8 Ω)
- 2 x 250 W (100 V)
- Dante® Interface: 4 inputs, 4 outputs
- Inputs:
- 4 x Mic/Line (balanced, screw terminal or RCA)
- 1 x Digital (S/PDIF, RCA)
- Outputs:
- 4 x Speaker outputs (4/8 Ω) or
- 2 x Zone outputs (100 V, screw terminal)
- DSP Features:
- High-pass/Low-pass filter
- Parametric equalizer (5-band for input, FIR filter for output)
- Adjustable compressor/limiter
- Configurable delay
- Talkover with priority routing
- Built-in sine wave noise generator
- S/N Ratio: > 106 dB
- Total Harmonic Distortion (THD): < 0.05 %
- Network Connection: RJ45 (LAN/WLAN)
- Power Supply: 100-240 V / 50-60 Hz
- Power Consumption: 150 W (operation), < 0.5 W (standby)
- Dimensions (W x H x D): 220 x 44 x 320 mm
- Rack Size: 1 RU
- Weight: 1.95 kg
This amplifier provides advanced audio processing, network technology, and ease of use for high-quality sound installations.
