For those in need of a robust and versatile antenna solution for vehicles or ceiling installations, a low-profile antenna designed for 5G MiMo 2x multi-systems is an excellent choice.

This antenna supports a wide range of frequencies, including 2G-GSM, 3G-UMTS, 4G-LTE, 5G, LTE 700, ISM/LoRa, and Wi-Fi Dual Band (2.4-2.485 GHz & 5.15-6 GHz)

By buying this product you can collect up to 6 loyalty points. Your cart will total 6 loyalty points that can be converted into a voucher of € 1,20.


€ 134,99

Quantity Discount You Save
2 2% Up to € 5,40
4 4% Up to € 21,60
6 6% Up to € 48,60
8 8% Up to € 86,39
10 10% Up to € 134,99

Product information

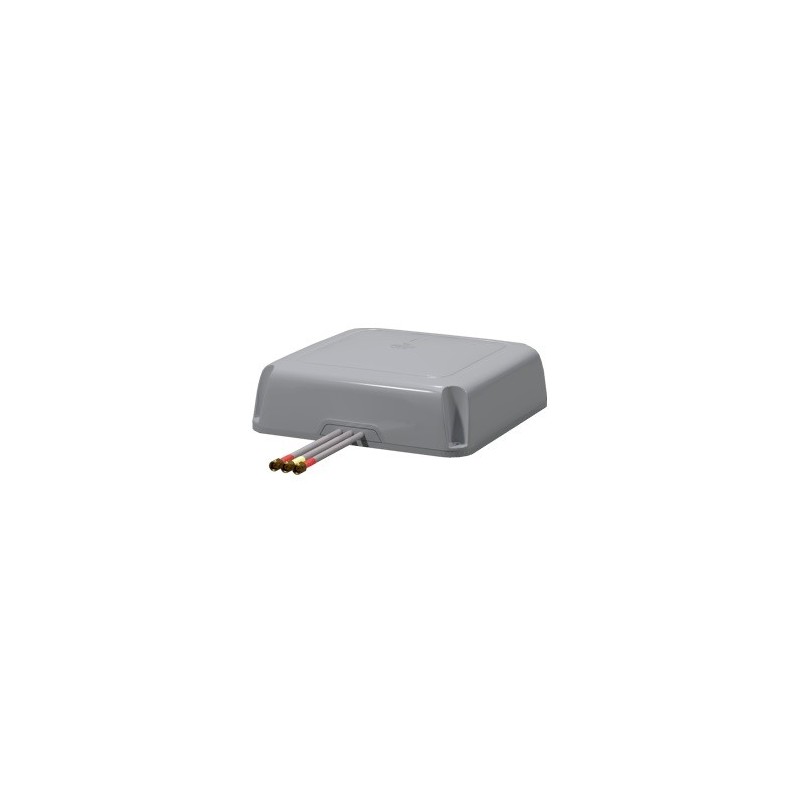

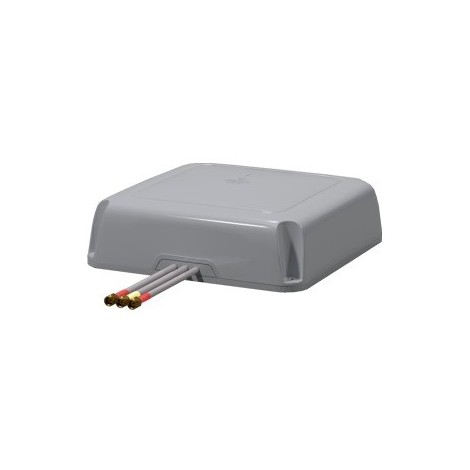

Low Profile Antenna for Vehicle and Ceiling Installations

For those in need of a robust and versatile antenna solution for vehicles or ceiling installations, a low-profile antenna designed for 5G MiMo 2x multi-systems is an excellent choice. This antenna supports a wide range of frequencies, including 2G-GSM, 3G-UMTS, 4G-LTE, 5G, LTE 700, ISM/LoRa, and Wi-Fi Dual Band (2.4-2.485 GHz & 5.15-6 GHz).

Equipped with 5G MiMo 2x technology, this antenna ensures enhanced data throughput and reliable connectivity across multiple networks. It offers protection from static discharges through DC-Ground and can function efficiently with or without a ground plane, making it highly adaptable for different installation scenarios. With a high antenna efficiency and a side cable outlet, this antenna provides a seamless integration for a wide range of mobile and fixed applications, ensuring stable and fast communication in various environments.

Type: Wide Band Low Profile
   Ground plane independent
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 5G MiMo 2x:
698-960 MHz & 1.71- 3.8 GHz (2G, 3G, 4G, 5G)
W-LAN:
2.4-2.485 GHz & 5.15-6 GHz (W-Lan Dual band)
Systems: 4G-LTE, 5G, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz, WiFi-2.4GHz, WiFi-5GHz, V2X
Gain: 5G MiMo 2x:
3 dBi @ 698-960 MHz; 7 dBi @ 1.71-3.8 GHz
W-LAN:
3 dBi @ 2.4-2.485 GHz; 7 dBi @ 5.15-6 GHz
Max Power: 10 Watts
Grounding protection: DC-Ground
Cable lenght / type: 2 m (6.56 ft) / Low loss
Connector: 2 x SMA-male, SMA-male Reverse polarity
Typical Efficiency: 5G MiMo 2x: > 80 % @ 698-960 MHz; > 85 % @ 1.71-3.8 GHz;
W-LAN: > 90 %
Correlation Coefficient: 5G MiMo 2x: < 0.05
