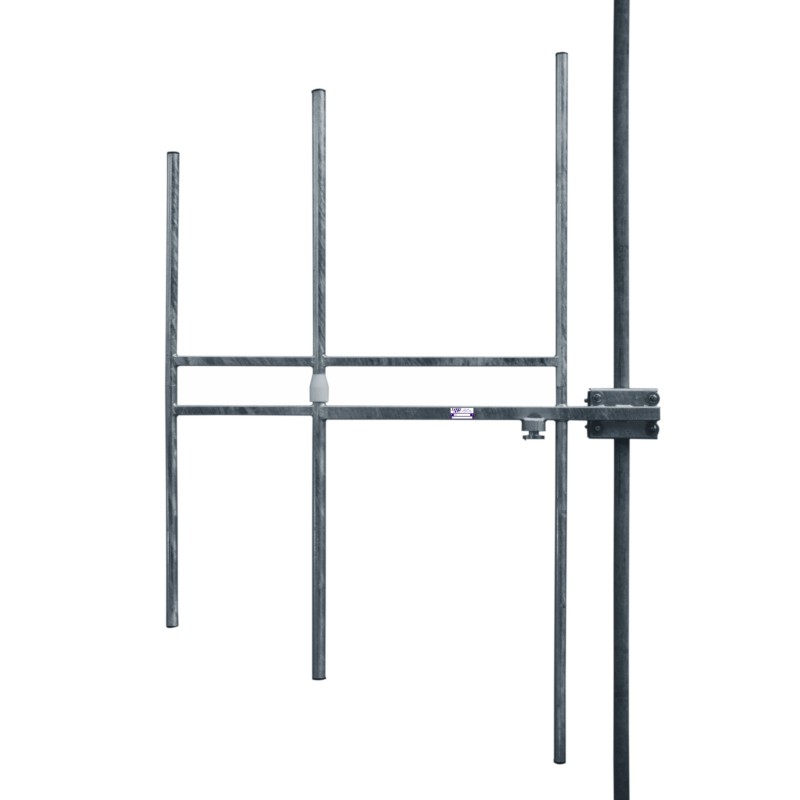

Vertical Polarization 3 elements FM Yagi Antennas 5dbd gain

Vertical Polarization 3 Elements FM Yagi Antennas 5dbd Gain View larger

: Label Italy

:

: New

: Yagi-Antennas

: Vertical Polarization 3 elements FM Yagi Antennas 5dbd gain

Vertical Polarization 3 elements FM Yagi Antennas with 5dbd gain, wide band FM antennas are particularly recommended for directional medium Output Power Transmitters.

It's robustness makes it ideal for any climatic condition, all the models are made of stainless steel with PTFE insulator. All the metal parts are electrically grounded.

This antenna is also produced in the TV VHF, DAB and amateur versions

By buying this product you can collect up to 33 loyalty points. Your cart will total 33 loyalty points that can be converted into a voucher of € 6,60.


€ 569,99

Quantity Discount You Save
2 2% Up to € 22,80
4 4% Up to € 91,20
6 6% Up to € 205,20
8 8% Up to € 364,79
10 10% Up to € 569,99

Product information

AKY-3N

  AKY/3N AKY/3M AKY/3F
FREQ. BEREIK 87,5 - 108 Mhz 87,5 - 108 Mhz 87,5 - 108 Mhz
IMPEDANTIE 50 Ohm 50 Ohm 50 Ohm
VSWR <1,25: 1 <1,25: 1 <1,25: 1
VERDIENEN 5dbd 5dbd 5dbd
AANSLUITING N 7/16 7/8
MAXIMUM KRACHT 800W 2KW 3KW
POLARISATIE Verticaal Verticaal Verticaal
GEWICHT 12,05 kg 12,05 kg 12,05 kg
DIMENSIES 1800x1250x60 mm 1800x1250x60 mm 1800x1250x60 mm
