Label Italy Circular polarization broadband FM antenna AKG/7

Label Italy Circular polarization broadband FM antenna AKG/7

Label Italy

Label Italy Circular polarization broadband FM antenna AKG/7

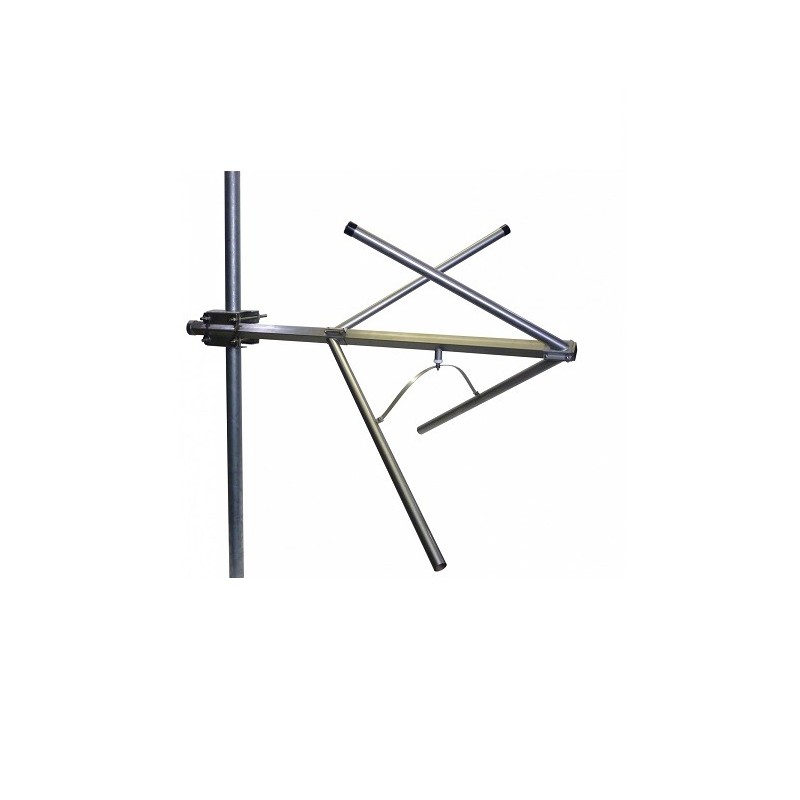

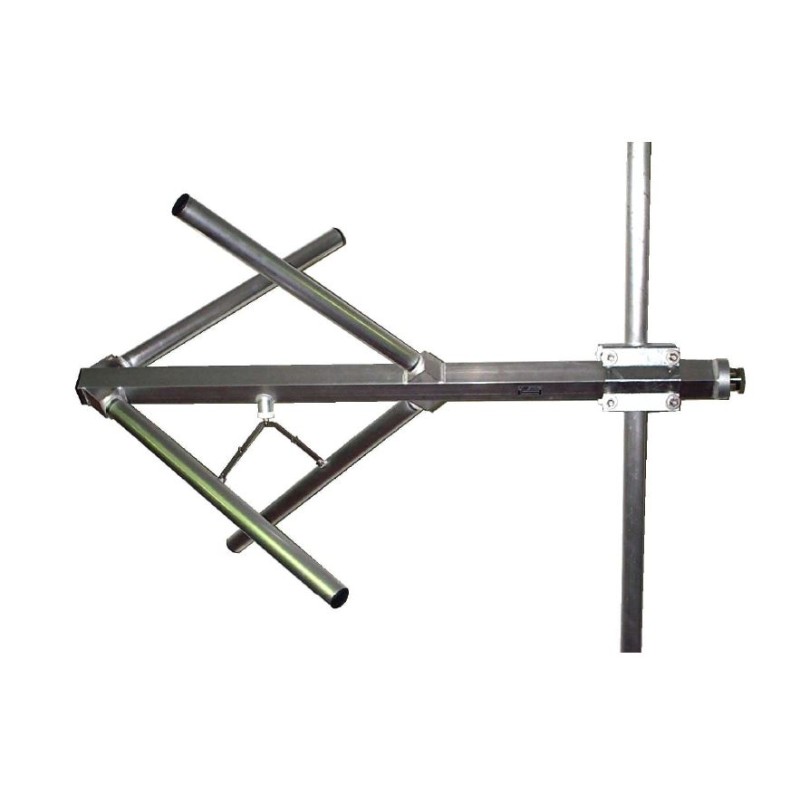

These broadband broadcasting antennas for circular polarization FM are highly resistant and made entirely of stainless steel with PTFE insulator. They can be disassembled into several parts to facilitate shipping.

By buying this product you can collect up to 48 loyalty points. Your cart will total 48 loyalty points that can be converted into a voucher of € 9,60.


€ 413,21

Option

  • -

  • R-CIRC7 Back Panel for AKG/7

Label Italy antenna options

  • AKG/7N 800W -1,5dBd N

  • AKG/7M 2KW -1,5dBd 7/16

  • AKG/7F 3KW -1,5dBd 7/8

  • AKG/77F 5KW -1,5dBd 7/8

Discount on your Order Discount on your Order
Free Shipping Free Shipping in NL
Volume Discount Volume Discount
Bonus System Bonus System
Secure Payment Secure Payment
Money Back Guarantee Money Back Guarantee
Trustpilot Trustpilot

Volume discounts

Quantity Discount You Save
2 2% Up to € 16,53
4 4% Up to € 66,11
6 6% Up to € 148,76
8 8% Up to € 264,45
10 10% Up to € 413,21

Product information Label Italy Circular polarization broadband FM antenna AKG/7

Label Italy circular polarization broadband FM antenna AKG/7

These broadband broadcast antennas for circular polarization FM are highly resistant and made entirely of stainless steel with a PTFE isolator. They are detachable into several parts to facilitate transmission.

The stainless steel is pickled using an electrochemical method, which ensures a uniform color and removes weld seams. All metal parts are electrically grounded to prevent potential problems caused by lightning strikes. For proper operation, they should be mounted on a support pole that is not too large and, if possible, without other antennas or metal structures nearby. This antenna is particularly suitable for urban installations where multipath reflections are a problem, and circular polarization significantly reduces negative effects. To increase gain and make it more directional, a rear reflector is available and can also be installed at a later time.

  AKG/7N AKG/7M AKG/7F
FREQ. BEREIK (Mhz) 87.5 – 108 87.5 – 108 87.5 – 108
IMPEDANTIE (Ohm) 50 50 50
VSWR <1.25:1 <1.25:1 <1.25:1
VERSTERKING (dBd) – 1.5 – 1.5 – 1.5
VERBINDER N 7/16 7/8
MAXIMUM VERMOGEN (W) 800 2000 3000
POLARISATIE Circulaire Circulaire Circulaire
Gewicht (kg) 10.9 10.9 11
AFMETINGEN (cm) 152x124x115 152x124x115 152x124x115
