Label Italy Circular polarization Narrow Band FM antenna AKG/8

    AKG/8

          New

              Label Italy Circular polarization Narrow Band FM antenna AKG/8

              These Circular polarization tuned FM antennas, very resistant but light, entirely made of stainless steel. This antenna is factory tuned at any frequency within 87.5 to 108 MHz. It can be easily retuned on any new frequency inside the FM band with the simple aid of suitable instrumentation.

              Please specify the desired frequency during your order.

            More details

          By buying this product you can collect up to 12 loyalty points. Your cart will total 12 loyalty points that can be converted into a voucher of € 2,40.


                € 252,06

                Discount on your Order Discount on your Order
                Free Shipping Free Shipping in NL
                Volume Discount Volume Discount
                Bonus System Bonus System
                Secure Payment Secure Payment
                Money Back Guarantee Money Back Guarantee
                Trustpilot Trustpilot

        Volume discounts

          Quantity Discount You Save
          2 2% Up to € 10,08
          4 4% Up to € 40,33
          6 6% Up to € 90,74
          8 8% Up to € 161,32
          10 10% Up to € 252,06

        More info Label Italy Circular polarization Narrow Band FM antenna AKG/8

          Label Italy circulaire polarisatie Narrow Band FM antenne AKG/8

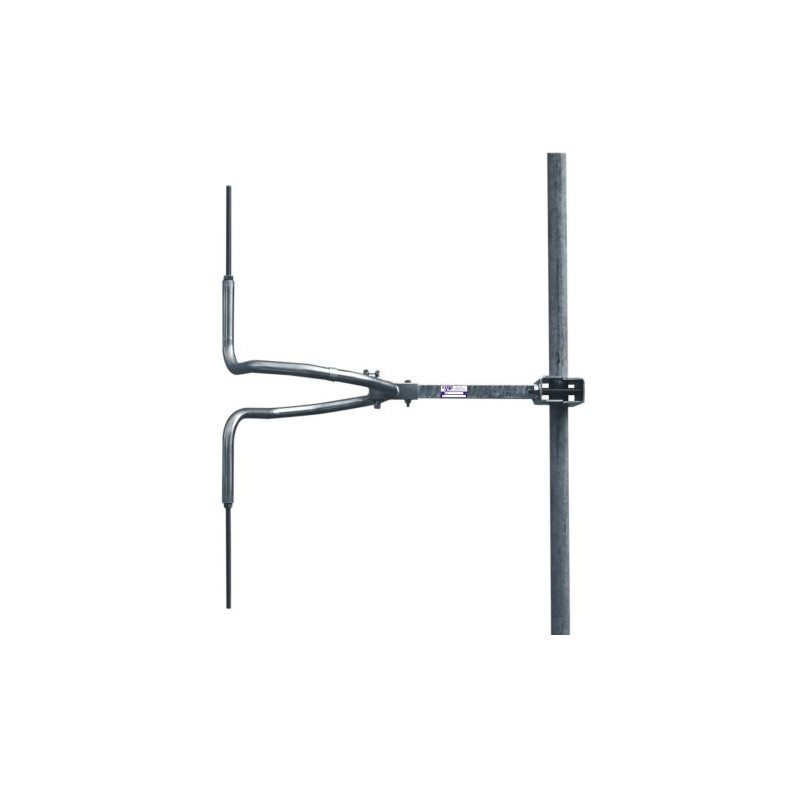

          Circular polarization tuned FM antennas, very resistant but light, entirely made of stainless steel. This antenna is factory tuned at any frequency within 87.5 to 108 MHz. It can be easily retuned on any new frequency inside the FM band with the simple aid of suitable instrumentation.

          The stainless steel is pickled with an electrochemical method that makes it uniform in color and eliminates the weld marks. All the metal parts are electrically grounded to prevent possible problems arising from lightnings.

          For a correct working they must be mounted on a support pole not too big and if possible without other antennas or metal structures nearby. This antenna is particularly suitable for city installations where multiple reflections (multipath) are a problem and circular polarization it drastically reduces the negative effects.


            AKG/8
          FREQ. RANGE (Mhz) 87.5 – 108
          IMPEDANCE (Ohm) 50

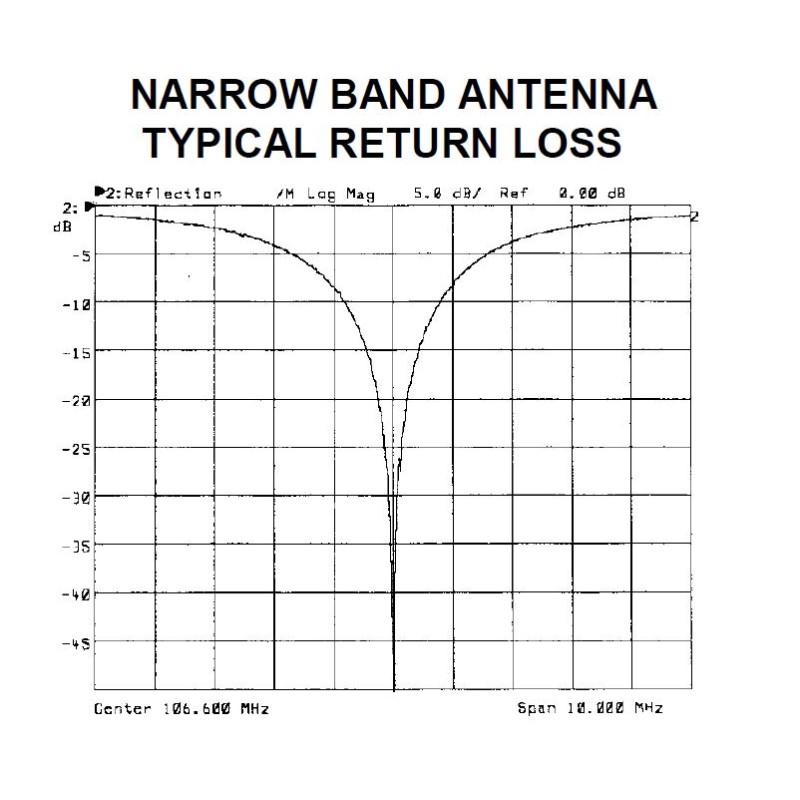

          V.S.W.R. <1.2:1
          GAIN (dBd) – 1.5
          BANDWIDTH (KHz) 300
          CONNECTOR N
          MAX POWER (W) 500
          POLARIZATION Circular
          WEIGHT (Kg) 3.4
          DIMENSIONS (cm) 58x35x85
