FM Dipole Antennas wide band breedband FM

New

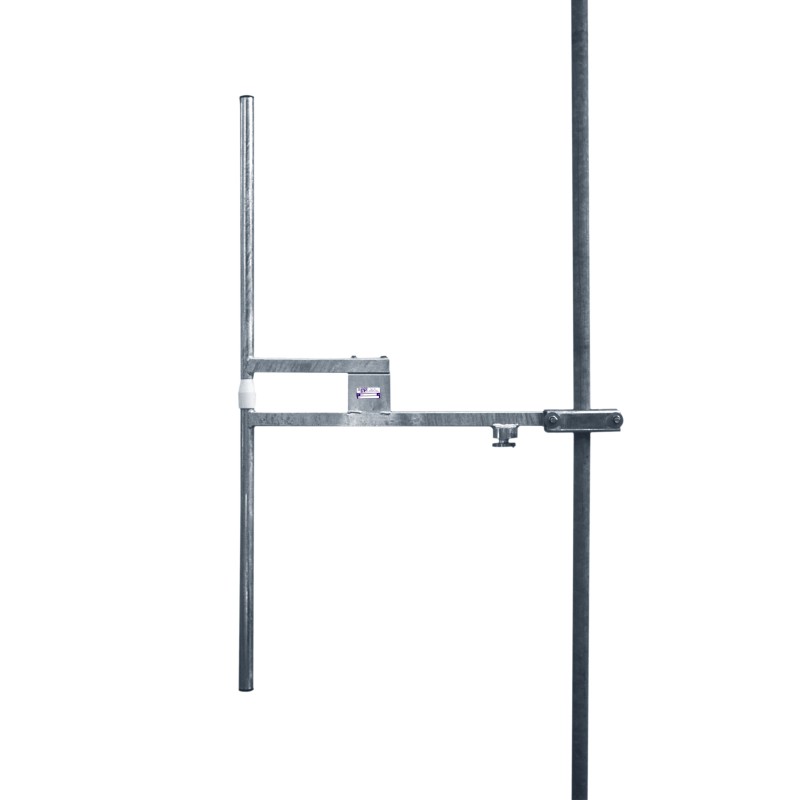

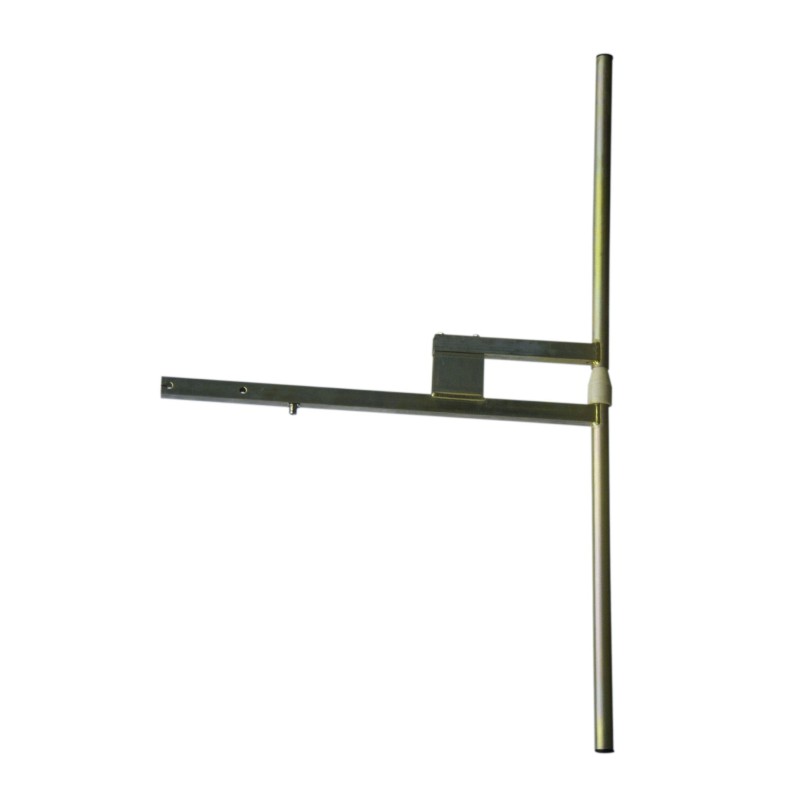

These wide band FM antennas, are available in three versions: aluminum, stainless steel or hot dipped steel. Demountable antenna model AKS-1 is also available in low cost version with code: AKSE-1N ( "N" type connector ). AKF-1N is the low cost version of aluminum dipole, like AKH-1.

Some specifications: AKG-11 model is specially designed to meet the need of irradiate signals of high power when the available space for the radiant system is too small, but it request a very robust structure

Dipole options:

  • AKF-1N 500W N connector

  • AKH-1N 800W N connector

  • AKH-1M DIPOLE 2KW 7-16 connector

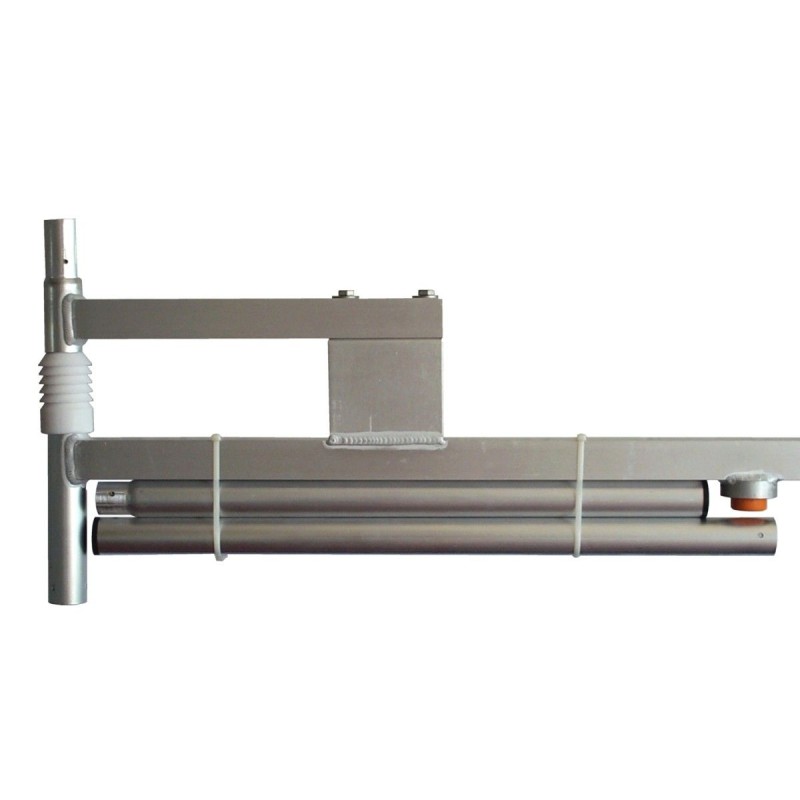

  • AKSE-1N Demountable DIPOLE FM 500W N connector

  • AKS-1N Demountable DIPOLE FM 800W N connector

  • AKS-1M Demountable DIPOLE FM 2KW 7-16 connector

  • AKG-1N Stainless Steel DIPOLE FM 800W N connector

  • AKG-1M Stainless Steel DIPOLE FM 2KW 7-16 connector

  • AKG-1F Stainless Steel DIPOLE FM 3KW 7-8 connector

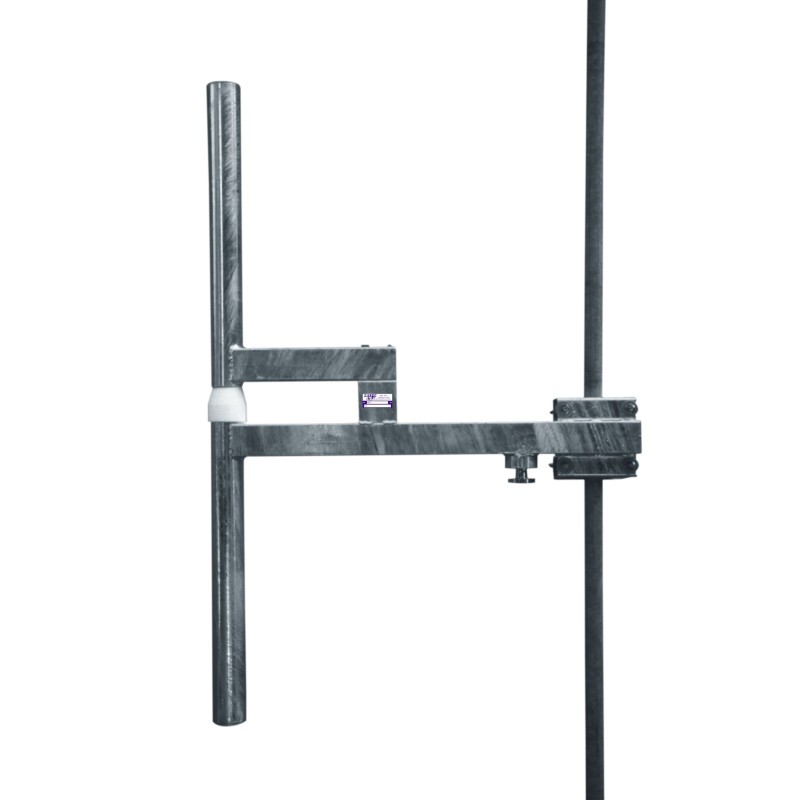

  • AKG-11 Hot Dipped Steel DIPOLE FM 5KW 7-8 connector

More details


✓ Good price ✓ Safe to Pay
✓ Free shipping to NL ✓ Money back guarantee
✓ Volume discount ✓ Bonus system
✓ Large assortment ✓ QShops certification

By buying this product you can collect up to 36 loyalty points. Your cart will total 36 loyalty points that can be converted into a voucher of EUR 7,20.


EUR 249,99 tax incl.

Dipole options

  • AKF-1N 500W N connector
  • AKH-1N 800W N connector
  • AKH-1M DIPOLE 2KW 7-16 connector
  • AKSE-1N Demountable DIPOLE FM 500W N connector
  • AKS-1N Demountable DIPOLE FM 800W N connector
  • AKS-1M Demountable DIPOLE FM 2KW 7-16 connector
  • AKG-1N Stainless Steel DIPOLE FM 800W N connector
  • AKG-1M Stainless Steel DIPOLE FM 2KW 7-16 connector
  • AKG-1F Stainless Steel DIPOLE FM 3KW 7-8 connector
  • AKG-11 Hot Dipped Steel DIPOLE FM 5KW 7-8 connector

Add to wishlist

Volume discounts

Quantity Price You Save
5 EUR 239,99 Up to EUR 50,00
10 EUR 227,49 Up to EUR 224,99

More info

Vertical Polarization FM Dipole Antennas

These wide band FM antennas, are available in three versions: aluminum, stainless steel or hot dipped steel. Demountable antenna AKS-1 model is also available in low cost version with code: AKSE-1N ( "N" type connector ). AKF-1N is the low cost version of aluminum dipole, like AKH-1.

Some specifications: AKG-11 model is specially designed to meet the need of irradiate signals of high power when the available space for the radiant system is too small, but it request a very robust structure.



Technical Specs:


  AKF-1N AKH-1 AKS-1 AKG-1 AKG-11
FREQ. RANGE 87.5 - 108 Mhz 87.5 - 108 Mhz 87.5 - 108 Mhz 87.5 - 108 Mhz 87.5 - 108 Mhz
IMPEDANCE 50 Ohm 50 Ohm 50 Ohm 50 Ohm 50 Ohm
V.S.W.R. < 1.25:1 < 1.25:1 < 1.25:1 < 1.25:1 < 1.25:1
GAIN 2dbd 2dbd 2dbd 2dbd 2dbd
CONNECTOR  "N" "N" - "7-16" "N" - "7-16" "N" - "7-16" - "7-8" EIA "7-8"
MAX POWER 500W 800W - 2KW 800W - 2KW 800W - 2KW - 3KW 5KW
POLARIZATION
Vertical Vertical Vertical Vertical Vertical
WEIGHT 4 kg 4 kg 4 kg 6.80 Kg 16.10 Kg
DIMENSIONS 1400x850x60 mm 1400x850x60 mm 1400x850x60 mm 1400x850x60 mm 1340x910x100 mm
MATERIAL Aluminum Alodyne 120 Aluminum Alodyne 120 Aluminum Alodyne 120 Stainless steel Hot dipped steel
