Brand: DMR-Electronics
Model: 1000W BE
Condition: New
Category: FM Transmitter Package
With the 1000W CyberMaxFM+ BE+ FMtransmitter package you get a complete, immediately deployable total package that allows you to be on-air within a few minutes. This professional set is based on the high-quality Black Edition (BE+) 19" rack-mounted FMtransmitter series, specially developed for demanding broadcasters operating in the 87.5 to 108 MHz band. The transmitter requires no manual tuning thanks to its fully broadband design: simply set the frequency and power, and you are ready to broadcast.
The package comes standard with a no-tune wideband dipole antenna and an EU power cable.
Note: excluding coaxial cable (choose your coaxial cable from the accessories, or use your own coaxial cable)
Accessories
4 other products in category - FM Transmitter Package
Product information
Professional broadcast power: CyberMaxFM BE 1000W

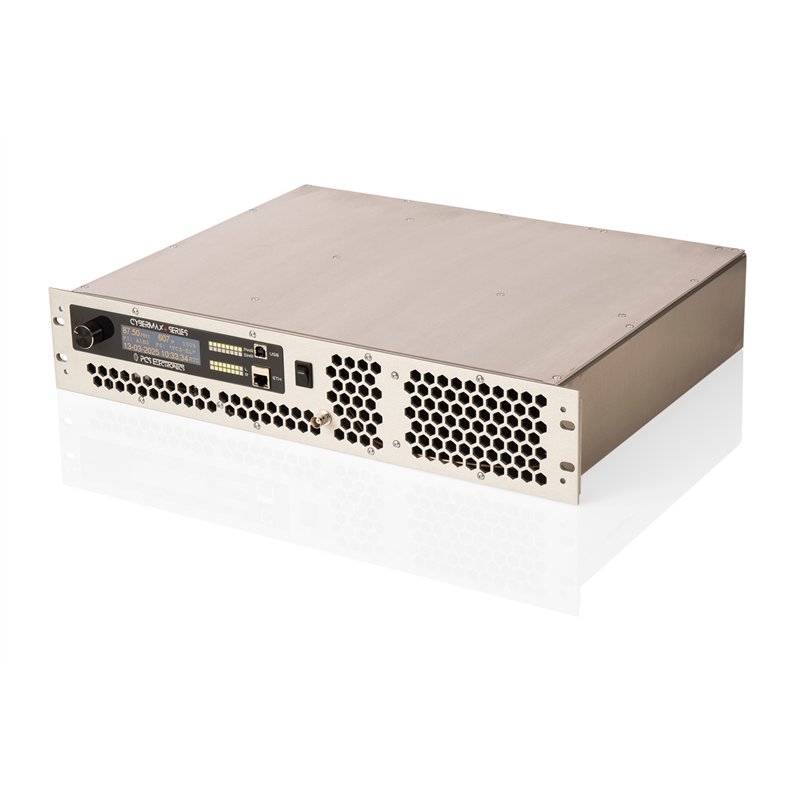

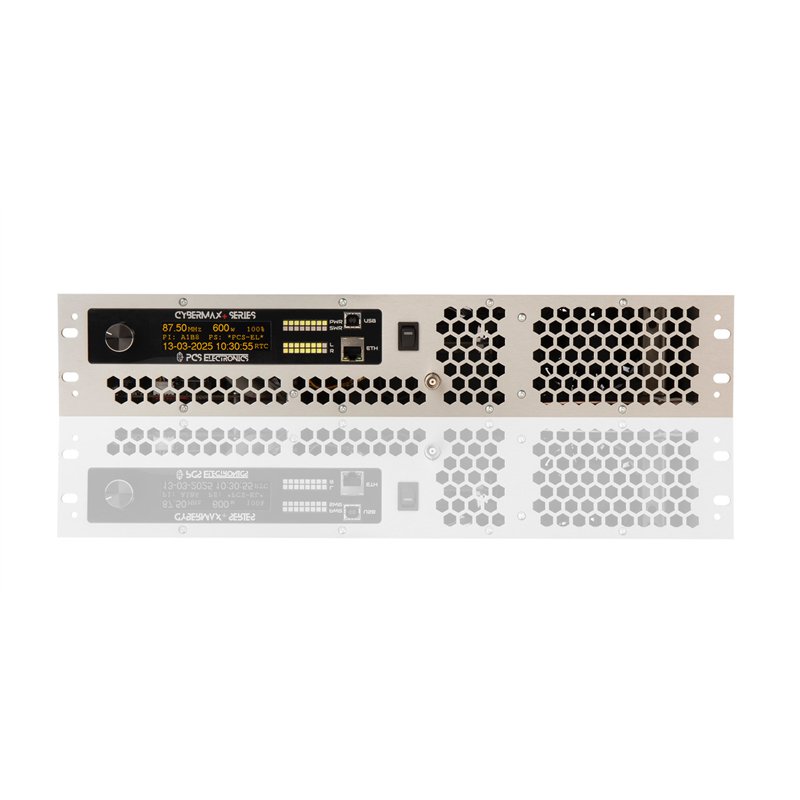

For radio stations that do not want to compromise on reliability, audio quality and functionality, the 1000W CyberMaxFM BE transmitter package is the ultimate solution. Whether it is an officially licensed commercial station, a local broadcaster, campus radio or religious broadcasts in remote locations; This system delivers a strong and stable signal. The transmitter is housed in a robust, specially designed 3H professional 19" rack housing that is lighter in construction and optimally RF-tight to prevent unwanted radiation and leakage.
Advanced OLED display and intuitive network management

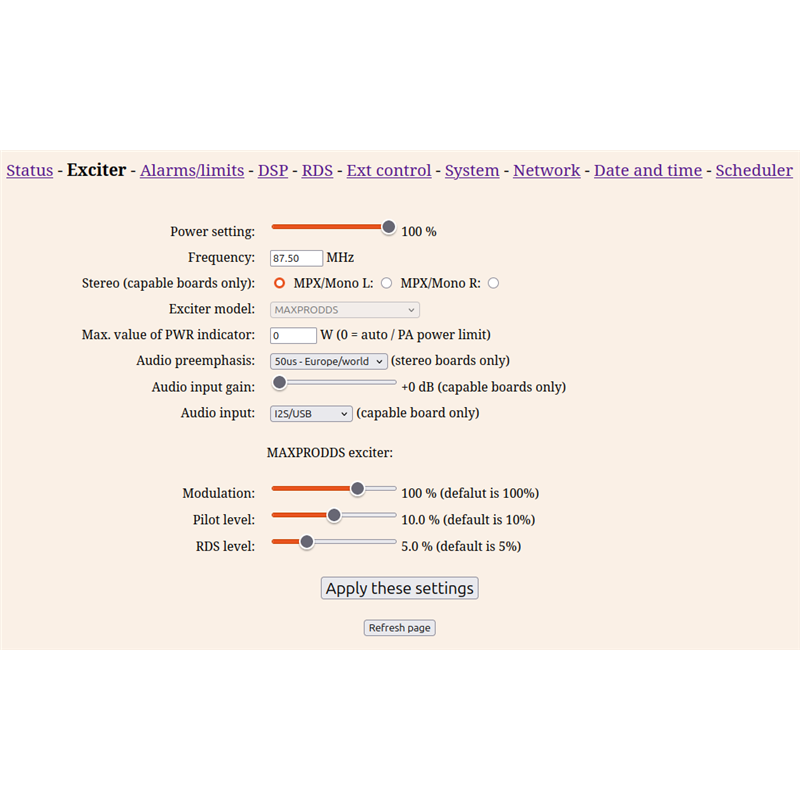

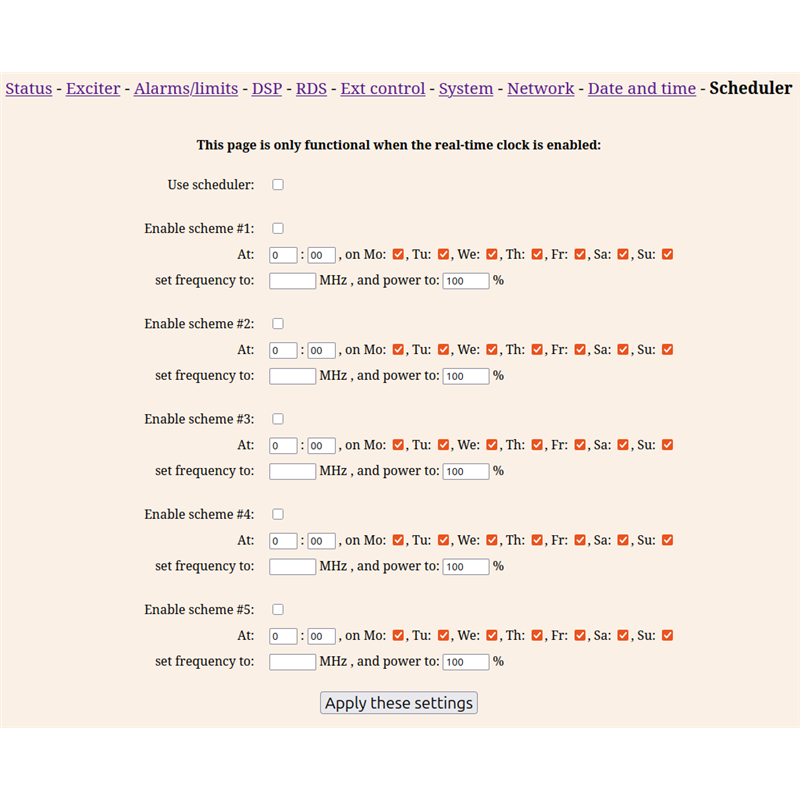

The updated Black Edition brings a sharp, high-contrast and wide-angle graphic OLED display (122×32) with smooth rotary knob operation (rotary encoder). Through this display, or through the built-in Ethernet web interface, you have full control over every aspect of the transmitter. Parameters such as the exact frequency, output power in 100 precise steps (adjustable in percentage), alarm status, audio levels and network settings can be adjusted directly via a PC or smartphone without additional software. In addition, the transmitter has an internal scheduler with which you can automatically switch the power to a preset value twice a day, completely independently of a computer.
Superior audio quality and tight MPX limiting
The CyberMaxFM BE excels with its excellent stereo separation and crystal-clear audio reproduction. A sharp low-pass filter and a greatly improved MPX level control with built-in limiters at strategic points ensure a tight signal within the legal bandwidth. The MPX level can also be easily finely adjusted from the outside via an opening next to the XLRconnectors on the back. Thanks to the modular construction, the most important subsystems can be easily exchanged or upgraded via the USB interface in the future without soldering.
Flexible extensions and smart streaming options
This package grows effortlessly with the ambitions of your radio station. Although the package comes with a single dipole antenna, the antenna system can easily be expanded to 2, 4 or even 8 dipoles to significantly increase the gain and range. Optionally, the transmitter can be provided with a customer-specific colored logo around the display, an AES/EBU digital audio input or an integrated IP audio streaming card (Barix standard / MicroMPX IP stream receiver). This allows you to play internet streams or MP3 files directly from the USB port, with artist and song titles automatically sent to the listener via the RDSsystem.
4. Technical Specifications
| Property | Specification |
| Type product | Complete 1000W FMtransmitter package with DSP and RDS |
| Frequency range | 87.5 - 108 MHz (FM-omroepband) |
| Adjustable power | 0 to 1000 Watts (in 100 percentage steps) |
| Minimum adjustable power | Can be reduced to approx. 25 Watt |
| Output connector | 7/16 female |
| Ontwerp exciter | Fully broadband (Wideband, no tuning necessary) |
| Behuizing / Formaat | Brand-new 3H Professional 19″ rack (RF-tight) |
| Display | High-contrast wide-angle OLED grafisch display (122×32) |
| Audio Processing | |
| RDS/ RBDS Kenmerken | Fully configurable, UECP support, automatic CT time via internet |
| Securities | SWR (Reflection), Temperature (Temp) and Reverse (Polarity) |
| Audio Ingangen | Gebalanceerd via XLR, USB digital audio (192kHz conversion rate) |
| LAN (RJ45 Ethernet), USB-interface voor firmware-updates | |
| Meegeleverde Antenne | No-tune wideband dipole antenna with mounting clamps |
| Voeding | AC ~ 230 V (Including EU power cable) |
| Garantie1 | 1 year manufacturer's warranty |
| Netto Gewicht | 7.85 kg (Gross shipping weight: 9.3 kg) |
| EAN-code | 4007754429268 |
