Monacor GCBB-100B High-Quality Swivel Wheel with Brake - Ø 100 mm (Blickle)

Name: GCBB-100B High-Quality Swivel Wheel with Brake - Ø 100 mm (Blickle)
Brand: Monacor
SKU: GCBB-100B
Price: 34.99 EUR
Availability: InStock

New

GCBB-100B High-Quality Zwenkwiel met Rem - Ø 100 mm (Blickle) - Transport cases-flight cases

View larger

€ 34,99

Quantity

Brand: Monacor

Model: GCBB-100B

Condition: New

Category: Transport cases-flight cases

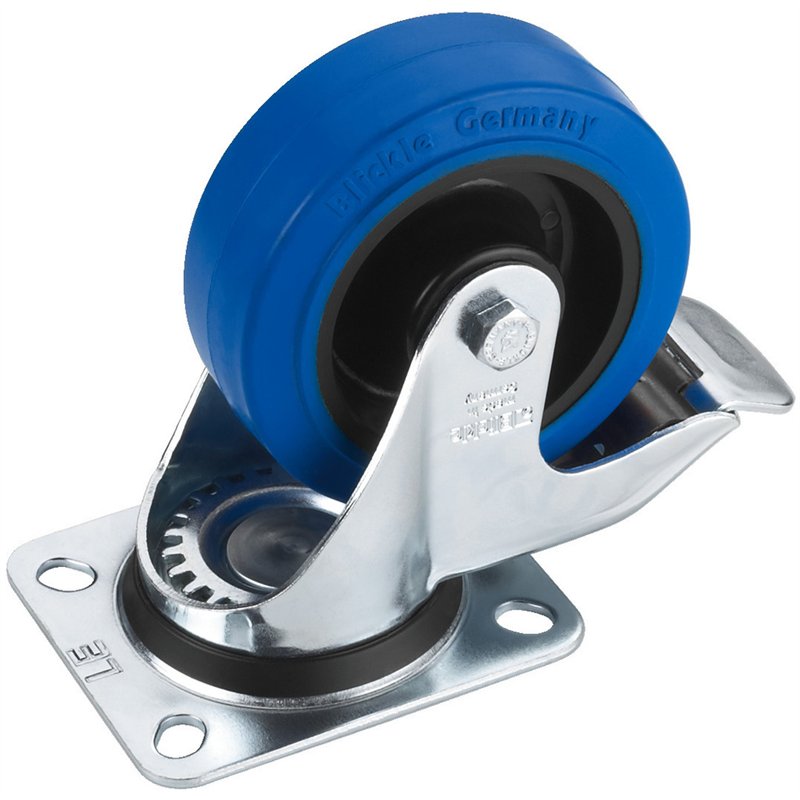

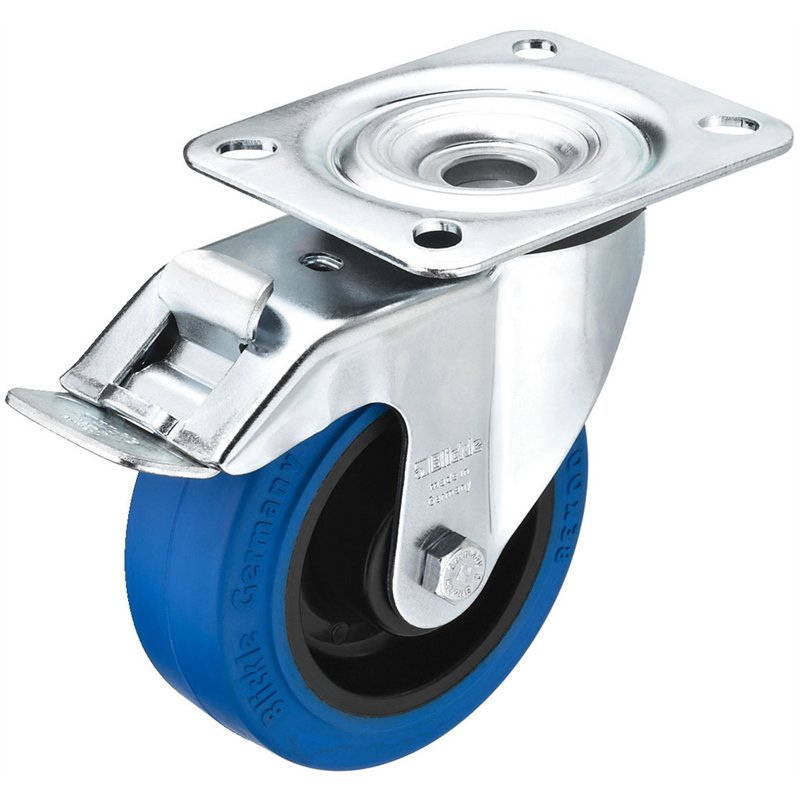

The GCBB-100B high-quality swivel wheel with brake (Ø 100 mm) is the professional solution for the safe and smooth transport of heavy equipment. This rock-solid wheel, produced by top brand Blickle, is ideally suited for mounting under professional PA speaker systems, amplifier racks, flight cases and transport crates. The wheel combines a sliding bearing with precise ball bearing guidance in the slewing ring for minimal rolling resistance and maximum maneuverability.

Print Product Page

Universal mini case, with aluminium side MC-50/SW

Product information

Professional Heavy Duty Transport Wheel: GCBB-100B

When you move valuable audio systems, flight cases or heavy transport crates, you want to be able to rely on wheels that run smoothly and can withstand a blow. The GCBB-100B caster wheel offers the perfect balance between mechanical strength and driving comfort. The basis of this castor was developed by Blickle, a global market leader in the field of wheels and rollers. With a wheel diameter of 100 mm and a total height of 125 mm, this wheel is the industry standard for the entertainment industry, stand construction and logistics applications.

Superior driving comfort and streak-free running characteristics

The tread of the GCBB-100B wheel is made of a special blue elastic natural rubber. This material has a very high elasticity, allowing the wheel to roll effortlessly over small thresholds, cables and bumps without transmitting vibrations to your valuable equipment. Because the rubber is completely non-marking (stripe-free), you can safely move flight cases or speakers over exhibition floors, sports hall floors or wooden stage parts without leaving black stripes. The wheel features a robust plain bearing in the wheel axle, while the swivel ring in the fork is guided by a smooth double ball bearing for effortless 360-degree rotation.

Integrated brake and robust galvanized chassis

Safety on the work floor or stage is essential. The GCBB-100B is therefore equipped with a sturdy, foot-operated brake. Once the brake is activated, both the turning movement of the wheel and the pivoting movement of the fork are effectively blocked. This keeps your speaker set or equipment stack rock solid, even on sloping surfaces. The complete metal frame and mounting plate are high-quality electrolytically galvanized. This zinc layer effectively protects the material against scratches, weather influences and rust formation, which significantly extends its lifespan.

Simple and solid mounting

With a sturdy mounting surface (support area) of 100 x 85 mm, the castor can be securely screwed under any wooden or metal base plate. Thanks to the four universal mounting holes, you can optimally distribute the pressure over the housing of your flight case or speaker. With a net weight of only 844 grams, the wheel hardly adds unnecessary weight, while it can carry an impressive static and dynamic load of up to 150 kg.

4. Technical Specifications

Property	Specification GCBB-100B
Type product	High-quality swivel castor with brake
Fabrikant / Merk	Blickle
Wieldiameter (Ø)	100 mm
Totale hoogte	125 mm
Mounting plate dimensions	100 x 85 mm
Max. laadvermogen	150 kg
Materiaal loopvlak	Elastic natural rubber (all-rubber elastic)
Kleur loopvlak	Blue (Bareless / Non-marking)
Materiaal chassis	Galvanized sheet steel (Zinc-plated metal parts)
Lagering
Remfunctie	Yes (Locks wheel and swing movement)
Netto Gewicht	0,844 kg (844 g)
EAN-code	4007754225860
