Dual band WiFi antenna 5-7dBi

Name: Dual band WiFi antenna 5-7dBi
Brand: DMR-Electronics
SKU: 20-0004COBW-NF
Price: 114.99 EUR
Availability: InStock

New

Dualband WiFi antenne 5-7dBi - WIFI Antennas

View larger

€ 114,99

Number

Brand: DMR-Electronics

Model: 20-0004COBW-NF

Stands: New

Categories: WIFI Antennas

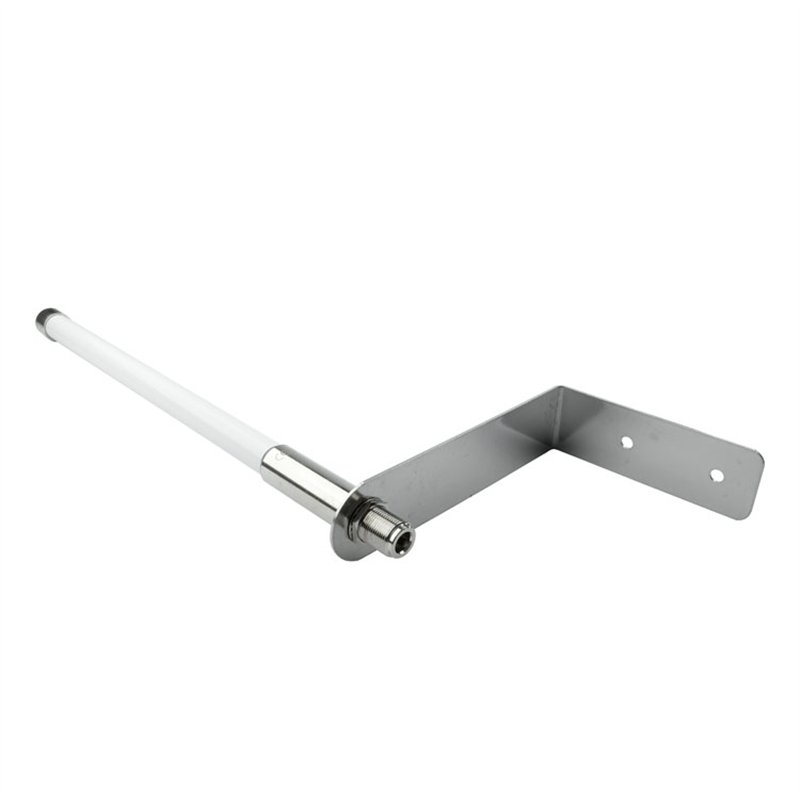

The 20-0004COBW-NF is a rugged, fixed-mount fiberglass dual-band WiFi antenna, designed for optimal wireless coverage on both the 2.4 GHz and 5 GHz frequency bands.

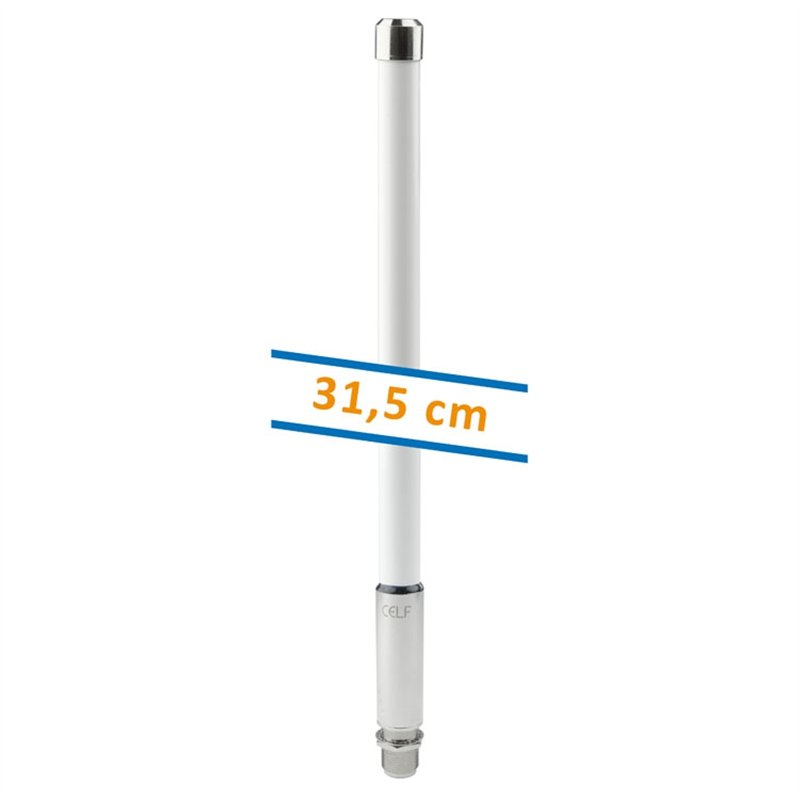

Thanks to the compact rod design (315 mm height) and the included wall bracket, this omnidirectional antenna is ideal for mounting on facades, inside business premises and warehouses, or on board ships as a marine antenna.

The most important advantages at a glance:

Dual-band Coverage: High signal gain of 5 dBi on 2.4 GHz and 7 dBi on the 5 GHz WiFi band.
Versatile Application: Excellent for WiFi, Zigbee and Bluetooth applications.
Durable Fiberglass Construction: Weatherproof with an operating temperature of -40 ºC to +80 ºC.
Flexible Mounting: Includes wall bracket with screws and plugs, or can be mounted directly as a cabinet feed-through with the supplied nut.
Universal N-Female Connector: Easy to connect to any desired antenna cable.

Product page Print

Viewed products

SmartGen 6.0 UECP Compatible RDS-RBDS Encoder

Product information

Reliable dual-band performance for indoors and outdoors

Are you looking for a powerful and compact WiFi antenna that will perform for a long time in striking and challenging locations? The 20-0004COBW-NF is a high-quality rod antenna that is specially designed to achieve a stable wireless connection. Thanks to the support for both 2.4 GHz (5 dBi gain) and 5 GHz (7 dBi gain), you get the most out of modern dual-band network equipment. The antenna radiates in a circle of $360^\circ$ all around (omni-directional), ensuring even coverage around the mounting point.

Indestructible fiberglass housing

The antenna is made of high-quality white fiberglass. This material optimally protects the internal antenna system against the harshest weather influences, UV radiation and temperature fluctuations between -40 ºC and 80 ºC. This not only ensures that the antenna continues to function perfectly technically, but also maintains a neat, professional appearance for years to come. This makes the model extremely suitable as a marine antenna on ships, or on the outside walls of business premises and warehouses.

Smart mounting options and cable freedom

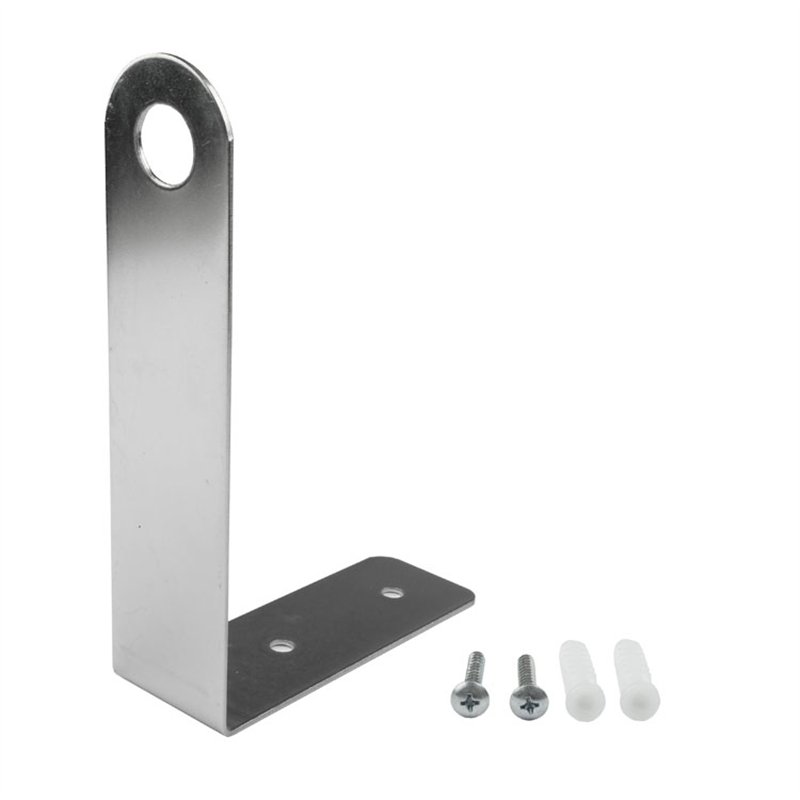

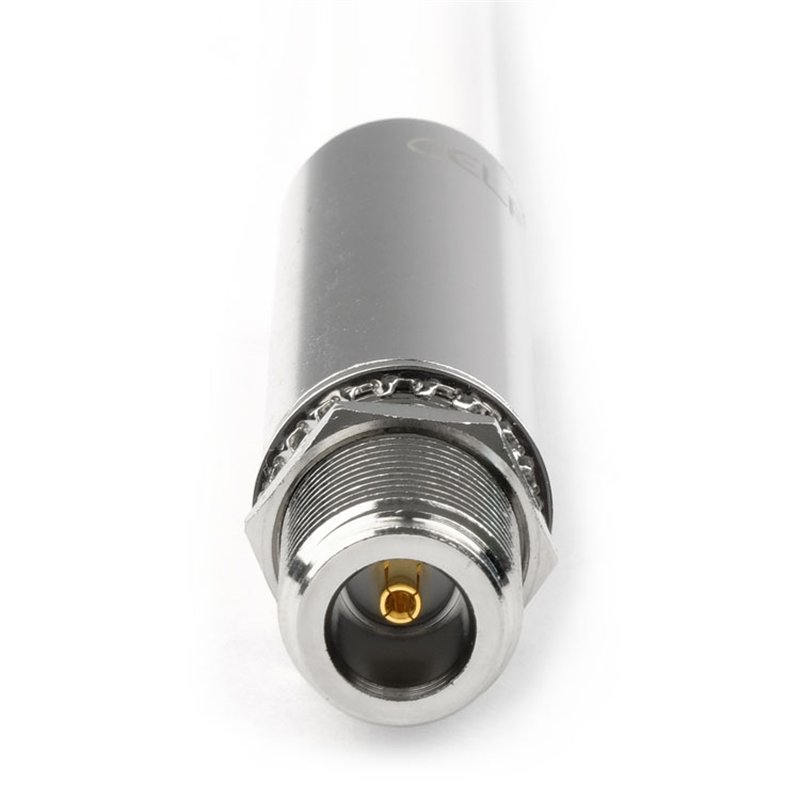

There is a standard N-Female connection in the metal base of the antenna. This means you are not tied to an integrated cable, but you can choose exactly the coaxial cable with the length and connectors that your installation requires. The supplied spacer (bracket) ensures sufficient distance to the wall for unobstructed signal radiation. Do you want to place the antenna directly on top of a switch box or housing? Then you can easily mount the antenna without a bracket via the lead-through with the supplied lock nut.

Note: This model is the direct successor to the 20-0017COBW-NF. If you mounted the old version in a mast, we recommend combining this antenna with the optional mast bracket 20-DDSBC-NF.

4. Technical Specifications

Item number / Model: 20-0004COBW-NF
Antenna type: OMNI 360° omnidirectional antenna (rod)
Suitable for: WiFi Dualband (2.4 GHz & 5 GHz), Bluetooth, Zigbee
Frequency Bands & Gain:
- 2.4 GHz: 5 dBi
- 5.0 GHz: 7 dBi
VSWR:
Impedance: 50 Ohm
Max. Power:50 Watt
Connector: N-Female (built-in by default)
Number of cables: 0 (cable can be connected separately)
Mounting options: Wall mounting (incl. bracket), cabinet bushing / panel mounting (incl. nut)
Housing material: Fiberglass (UV and weather resistant)
Dimensions (D x W x H): 19 x 19 x 315 mm
Color: White
Temperature range: -40 ºC to 80 ºC
Included in the box: Antenna, wall bracket, mounting nut, 2x screws and plugs
