Label Italy Vertical Polarization 5 - 8 elements FM Log Antennas with 6-7.5dbd gain
Brand: Label Italy
Model:
Stands: New
Categories: Yagi FM Antennas

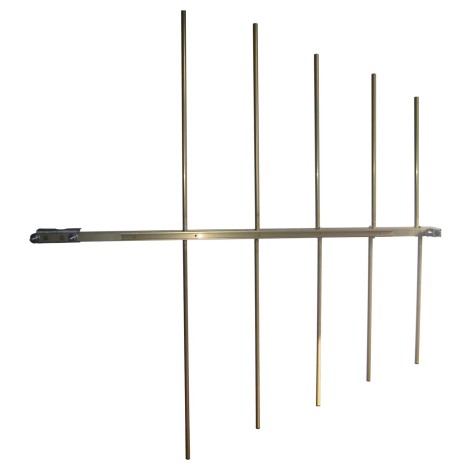

Vertical Polarization 5 - 8 elements FM Log Antennas with 6-7.5dbd gain, FM Log antennas 5 and 8 elements, wide band.

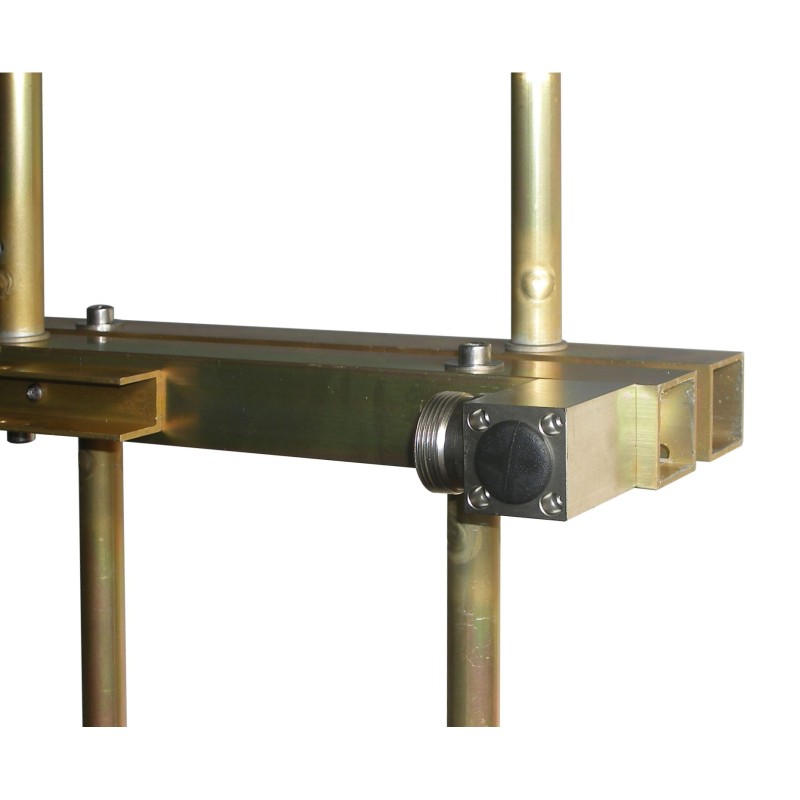

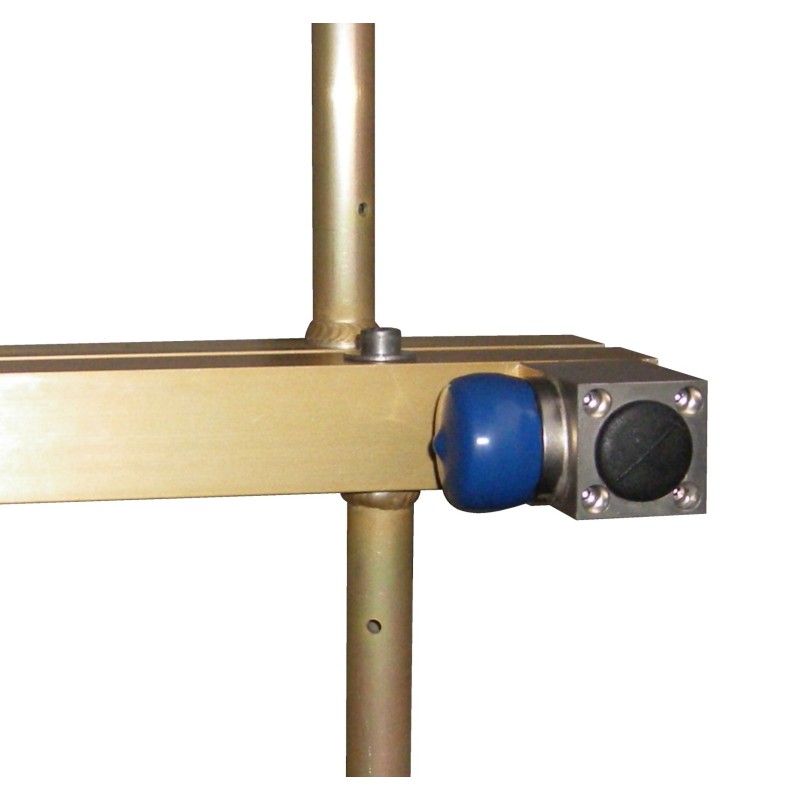

Entirely made of aluminum and stainless steel screws, they are light and completely demountable.
All the metal parts are electrically grounded, they have a diagram of radiation without secondary lobes.
The 5 elements model is often used in reception for re-Broadcast FM.
3 other products in category - Yagi FM Antennas
Product information
| AKL/5N | AKL/5M | AKL/8M | |
| FREQ. RANGE |
87.5 - 108 Mhz | 87.5 - 108 Mhz | 87.5 - 108 Mhz |
| IMPEDANCE | 50 Ohm | 50 Ohm | 50 Ohm |
| V.S.W.R. | < 1.2:1 | < 1.2:1 | < 1.2:1 |
| GAIN | 6db | 6db | 7.5db |
| CONNECTOR | N | 7/16 | 7/16 |
| MAX POWER |
500W | 2KW | 2KW |
| POLARIZATION | Vertical | Vertical | Vertical |
| WEIGHT | 5.7 Kg | 5.9 Kg | 7.2 Kg |
| DIMENSIONS | 1720x1500x60 mm | 1720x1500x60 mm | 1680x2600x230 mm |
