Monacor STA-700 Stereo PA amplifier

Name: STA-700 Stereo PA amplifier
Brand: Monacor
SKU: STA-700
Price: 314.99 EUR
Availability: InStock

New

View larger

€ 314,99

Quantity

Brand: Monacor

Model: STA-700

Condition: New

Category: Monacor amplifiers

Professional power for universal applications: The STA-700
The STA-700 Stereo PA Amplifier offers the perfect balance between raw power and reliable electronics. With a maximum power of 800 Watts, this power amplifier is an excellent choice for fixed installations in catering establishments, club buildings and schools, but it also provides the necessary reliability for mobile use by DJs and bands. The amplifier excels in efficiency with extremely low total harmonic distortion for flawless sound reproduction.

Print Product Page

Product information

Professional power for universal applications: The STA-700
The STA-700 Stereo PA Amplifier offers the perfect balance between raw power and reliable electronics. With a maximum power of 800 Watts, this power amplifier is an excellent choice for fixed installations in catering establishments, club buildings and schools, but it also provides the necessary reliability for mobile use by DJs and bands. The amplifier excels in efficiency with extremely low total harmonic distortion for flawless sound reproduction.

Integrated limiter and clear control

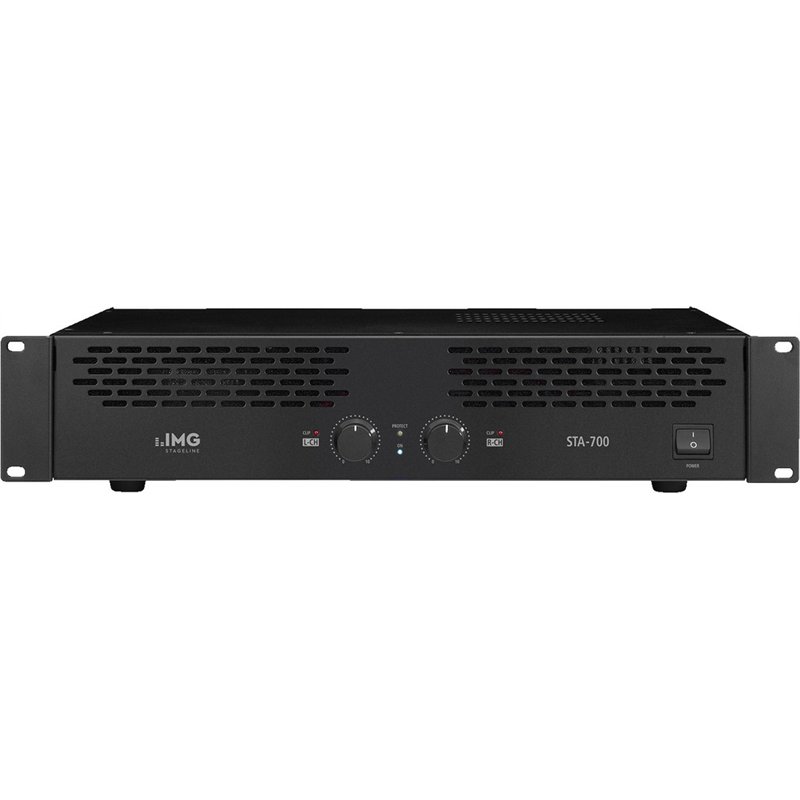

On the front of the STA-700 there are two independent volume controls that allow you to accurately adjust the left and right channels separately. To protect your speakers from damaging overdrive, the amplifier features an integrated limiter and a bright LED clip indicator per channel. As soon as the input signal comes in too loud, the system subtly intervenes to keep the sound pure and prevent damage.

Extensive circuit protection and silent boot

Security is central to the design of the STA-700. The built-in protection circuit constantly monitors the status of the amplifier. In the unlikely event that a short circuit occurs, the temperature rises too high or direct voltage (DC) is detected on the outputs, the amplifier will immediately switch itself to protection mode. This is made immediately visual via the LED status indicators on the front panel. In addition, the automatic switch-on delay ensures that there is no loud and harmful 'bang' over the speakers when you switch on the sound set.

Flexible connectivity and ease of installation

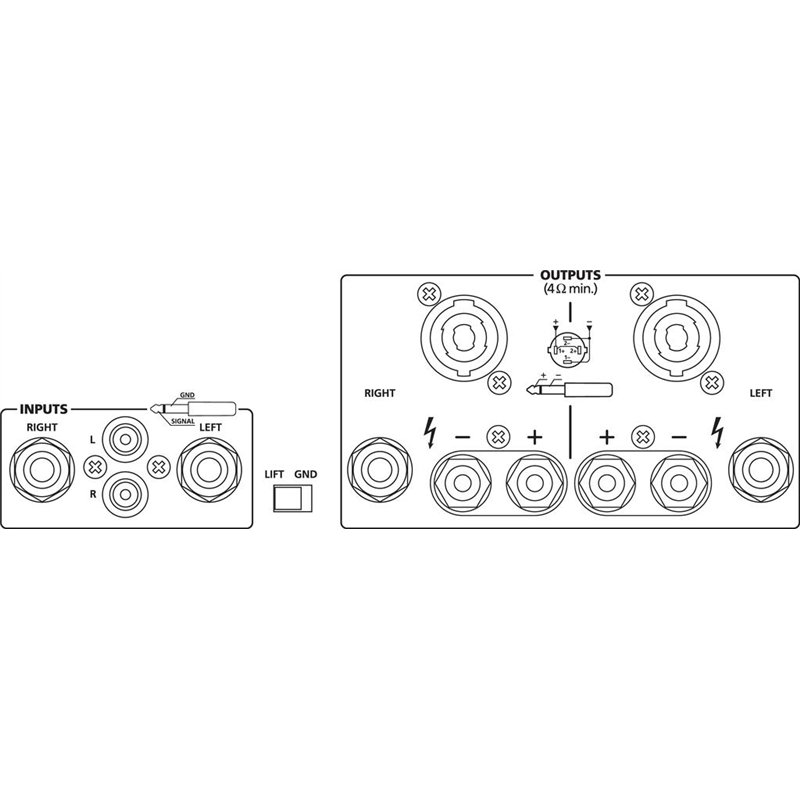

With a standard width of (19 inches), you can easily slide the STA-700 into an audio rack. The rear is equipped with a wide range of connections for maximum flexibility. For the inputs you can choose between 6.3 mm jack or RCA connections. For the speakers, the amplifier offers professional SPEAKER sockets, 6.3 mm jacks and traditional, robust screw terminals. Finally, the Ground Lift switch ensures that you can easily disconnect the signal ground from the housing ground, which immediately eliminates any hum caused by a ground loop.

4. Specifications

Peak output power	800 W
Power rating	400 W
Power rating at 4 Ω	2 x 275 W
Power rating at 8 Ω	2 x 200 W
Channels	2
Inputs	0.85 V/55 kΩ
Frequency range	10-20,000 Hz
Integrated limiter	yes
S/N ratio	85 dB
Crosstalk attenuation	> 43 dB
THD
Power supply	˜ 230 V/50 Hz/1,100 VA
Mains voltage	230 V
Mains frequency	50 Hz
Power consumption, operation	1,100 VA
Admiss. ambient temp.	0-40 °C
Width	482 mm
Height	96 mm
Depth	296 mm
Rack units, RU	2
Weight	9.4 kg
Connections	1 x 6.3 mm jack L/R 1 x RCA L/R 2 x SPEAKER 1 x 6.3 mm jack L/R 2 x pair of screw terminals
Packaging dimensions (W x H x L)	0.37 x 0.14 x 0.51 m
Gross weight	10.28 kg
Net weight	9.7 kg

EAN code	4007754181609
Net weight	9.7 kg
