Brand: Monacor
Model: MXR-6
Condition: New
Category: Monacor Studio Mixers

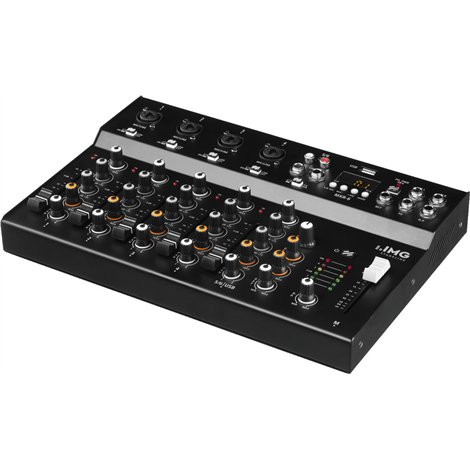

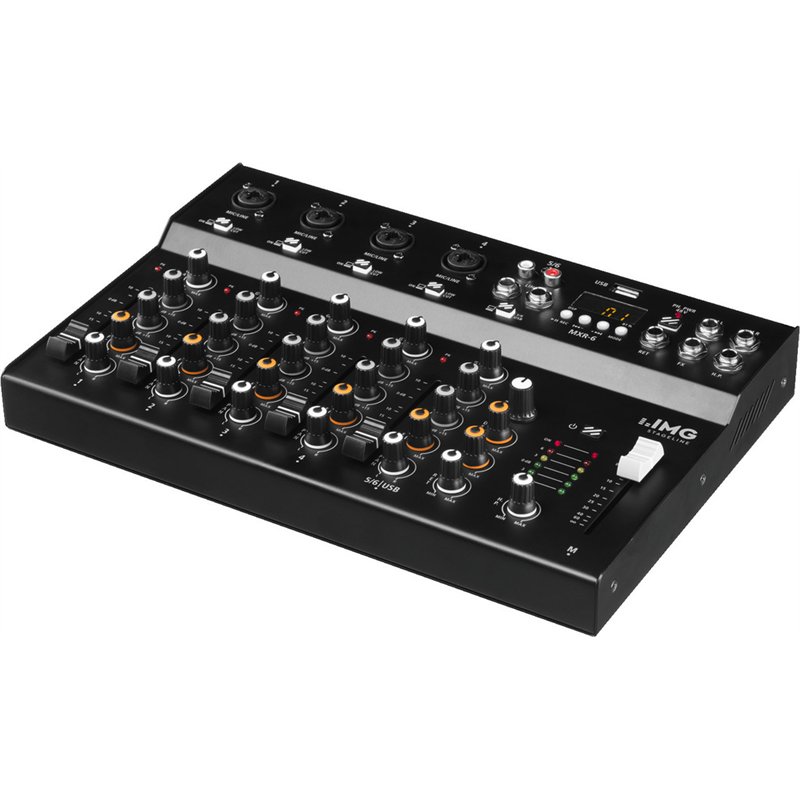

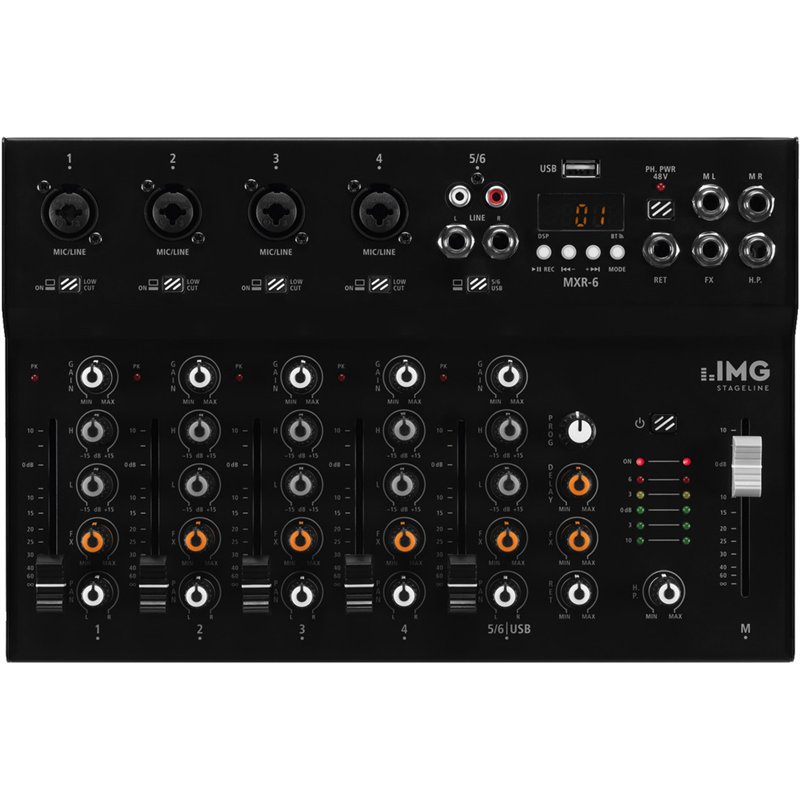

MXR-6 6-channel audio mixer, with DSP effect unit, integrated MP3 player and Bluetooth receiver.
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
- 4 mono input channels with gain control, 2-way equalizer and pan pot
- 2 stereo input channels with 2-way equalizer and balance control
- MP3 player
- USB port
- Bluetooth receiver
- 16 adjustable delay effects
- Adjustable aux return input and FX send output
- +48 V phantom power, can be activated as required
- Adjustable headphone output
- Stereo LED level display
- Power is provided via USB or enclosed power supply
7 other products in category - Monacor Studio Mixers
Product information
Technical specifications MXR-6
MXR-6
Input channels
6
Number of mix/mono
4
No. of stereo
1
Mic input
2 mV, bal. 4 x XLR
Line input
100 mV (stereo), 2 x 6.3 mm jack L/R
60 mV (mono), 2 x 6.3 mm jack
Aux input
400 mV, 1 x 6.3 mm jack L/R
Master output
500 mV, 1 x 6.3 mm jack L/R
Effect send
4.4 V, 1 x 6.3 mm jack
Headphones
≥ 8 Ω, 1 x 6.3 mm jack
USB
yes
Bluetooth
yes
Frequency range
20-20,000 Hz
THD
S/N ratio
> 83 dB(A)
Equalizer bass
±15 dB/80 Hz
Equalizer treble
±15 dB/12 kHz
Phantom power
48 V
Power supply
USB or encl.
power supply
Admiss. ambient temp.
0-40 °C
Dimensions
308 x 53 x 205 mm
Width
308 mm
Height
53 mm
Depth
205 mm
Weight
1.9 kg
Packaging dimensions (W x H x L)
0.33 x 0.24 x 0.08 m
Gross weight
2.1 kg
Net weight
1.93 kg
MXR-6
EAN code
4007754273403
Net weight
1.93 kg
| MXR-6 | |
|---|---|
| Input channels | 6 |
| Number of mix/mono | 4 |
| No. of stereo | 1 |
| Mic input | 2 mV, bal. 4 x XLR |
| Line input | 100 mV (stereo), 2 x 6.3 mm jack L/R
60 mV (mono), 2 x 6.3 mm jack |
| Aux input | 400 mV, 1 x 6.3 mm jack L/R |
| Master output | 500 mV, 1 x 6.3 mm jack L/R |
| Effect send | 4.4 V, 1 x 6.3 mm jack |
| Headphones | ≥ 8 Ω, 1 x 6.3 mm jack |
| USB | yes |
| Bluetooth | yes |
| Frequency range | 20-20,000 Hz |
| THD | |
| S/N ratio | > 83 dB(A) |
| Equalizer bass | ±15 dB/80 Hz |
| Equalizer treble | ±15 dB/12 kHz |
| Phantom power | 48 V |
| Power supply | USB or encl.
power supply |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 308 x 53 x 205 mm |
| Width | 308 mm |
| Height | 53 mm |
| Depth | 205 mm |
| Weight | 1.9 kg |
| Packaging dimensions (W x H x L) | 0.33 x 0.24 x 0.08 m |
| Gross weight | 2.1 kg |
| Net weight | 1.93 kg |
| MXR-6 | |
|---|---|
| EAN code | 4007754273403 |
| Net weight | 1.93 kg |
