Brand: Monacor
Model: MMX-11USB
Stands: New
Categories: Monacor Studio Mixers

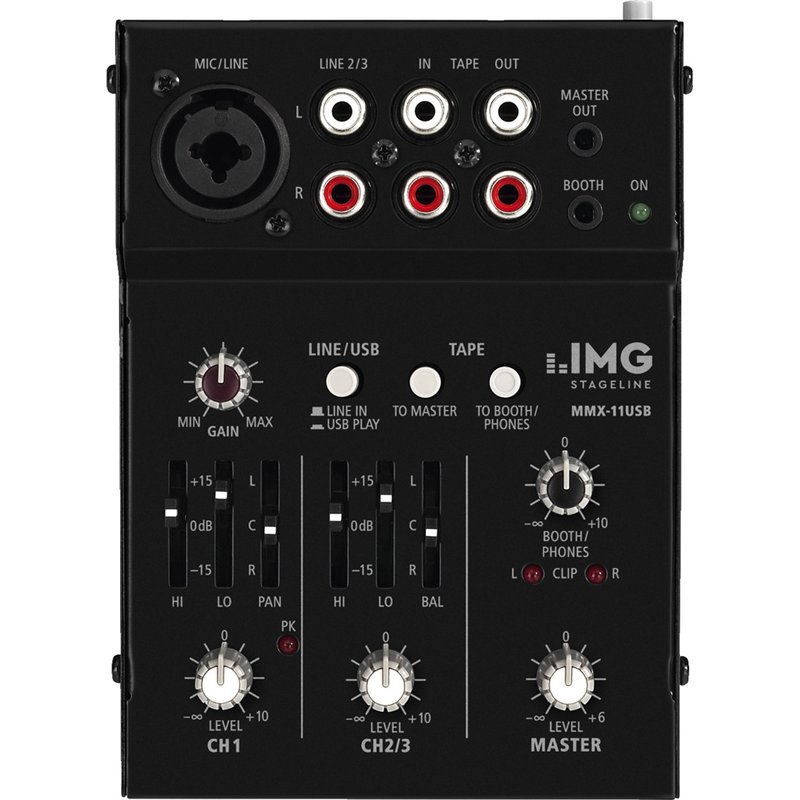

The MMX-11USB is an ultra-compact 2-channel miniature audio mixer, equipped with 3 inputs and an integrated USB port. This versatile mini mixer has a built-in USB audio interface that is automatically recognized and addressed by your computer as an external sound card. Thanks to full-duplex USB technology, you can simultaneously play digital audio from your PC and record your live mix directly to the computer in high quality.
8 other products in category - Monacor Studio Mixers
Product information
Compact powerhouse for the studio and on the road: The MMX-11USB
Do you need a reliable and compact audio solution that fits effortlessly on any desk? The MMX-11USB proves that a professional audio mixer doesn't have to be big. This 2-channel miniature mixing console brings together analog audio and digital flexibility in a housing that fits straight into your laptop bag. The system is directly plug-and-play: as soon as you connect the mixer to a PC or Mac via USB, it is recognized as an external sound card. Whether you record a podcast, record voice-overs or mix background music with a microphone signal; the MMX-11USB delivers clear, interference-free signal transmission.
Precise tone control and phantom power
Despite its miniature size, the MMX-11USB is equipped with features you expect on large mixing consoles. The first channel is a flexible mono channel, ideal for microphones or instruments. This channel has a manual gain control, a panorama potentiometer (pan) and a visual Peak LED that warns of overdrive. Channel 2 is designed as a stereo channel with its own volume control and balance knob. Both channels are equipped with an active 2-way equalizer (bass and treble) to tune your sound warmly and faithfully. In addition, the mixer provides a permanent 20 V phantom power, so you can also use condenser microphones directly.
Smart routing and full-duplex USB functionality
The real power of the MMX-11USB lies in the full-duplex USB architecture. This means that the data flow works both ways: you can send digital audio (such as music or sound effects) from the computer to the mixer, mix it live with your microphone signal, and directly record the complete result digitally back to your PC via the same USB connection. For monitoring there is an adjustable headphone output and a handy Clip LED that monitors the general output level. You can easily connect additional analog sources or recording devices via the stereo tape connections (RCA) or the central 3.5 mm stereo master output.
4. Technical Specifications
-
Product type: 2-channel miniature audio mixer
-
Inputs: 3 inputs in total (1 x mono, 1 x stereo, 1 x tape play)
-
USB interface: Integrated USB audio interface (recognized as external sound card)
-
USB mode: Full-duplex (simultaneous recording and playback)
-
Mono channel functions: Gain control, 2-way equalizer (bass/treble), panorama (pan pot), Peak LED
-
Stereo channel functions: Level control, 2-way equalizer (bass/treble), balance control
-
Phantom power: 20 V (permanently active on the mono channel)
-
Analog outputs: 1 x 3.5 mm stereo jack (master output)
-
Headphone output: Yes, separately adjustable volume
-
Additional connections: Stereo RCA Tape Record / Tape Play connections
-
Visual indicators: Clip LED (general overload indicator), Peak LED (channel 1)
-
Housing: Robust and compact metal housing
Specifications
| Number of channels | 2 |
| Number of entrances | 3 |
| Microfooningang | 0.5 mV, 1 x 3-polig XLR |
| Line input | 150 mV (stereo), 1 x RCA L/R2 mV (mono), 6,3 mm-aansluiting |
| Tape (play) | 420 mV, 1x RCA L/R |
| Master export | 6 V max., 1 x 3.5 mm jack |
| Cabin exit | 6 V max., 1 x 3.5 mm jack |
| Band (recording) | 1x RCA L/R |
| USB | And |
| Frequency range | 20-20.000 Hz |
| THD | |
| S/N ratio | 81 dB, weighed |
| Equalizer bas | ±15 dB/80 Hz |
| Equalizer treble | ±15 dB/12 kHz |
| Phantom power | 20 V |
| Power supply | via USB interface or via axe. power supply |
| Operating voltage (possible alternative) | Direct current 5V |
| Power supply (possible alternative) | Direct current 500 mA |
| Admit it. ambient temp. | 0-40 °C |
| Dimensions | 102 x 45 x 140 mm |
| Width | 102 mm |
| Height | 45 mm |
| Depth | 140 mm |
| Weight | 430 gr |
| Package dimensions (W x H x L) | 0,14 x 0,07 x 0,18 meter |
| Gross weight | 0,615 kg |
| Net weight | 0,48 kg |
| EAN-code | 4007754236644 |
| Net weight | 0,48 kg |
