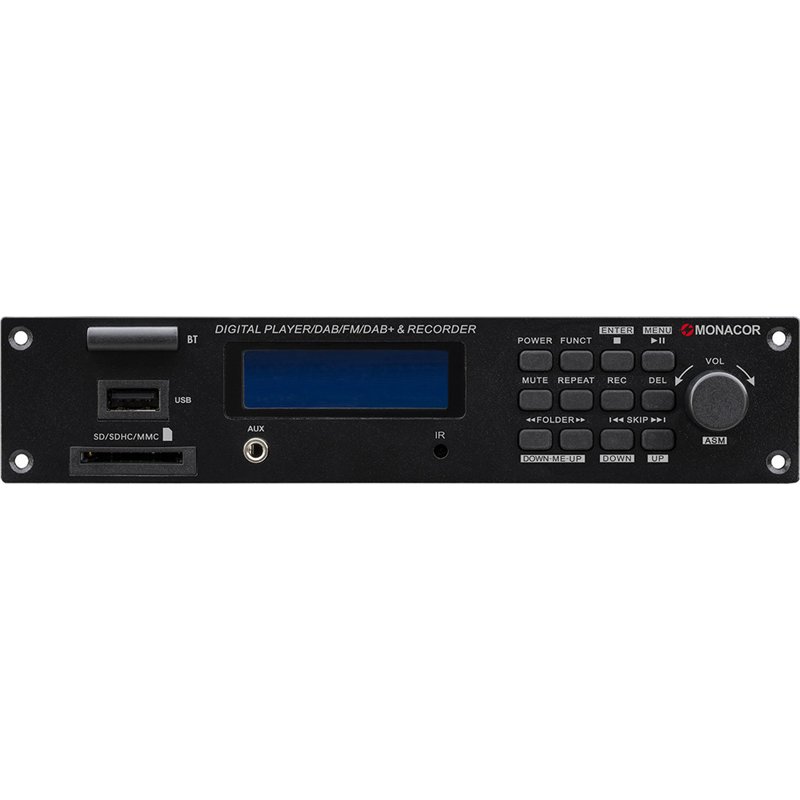

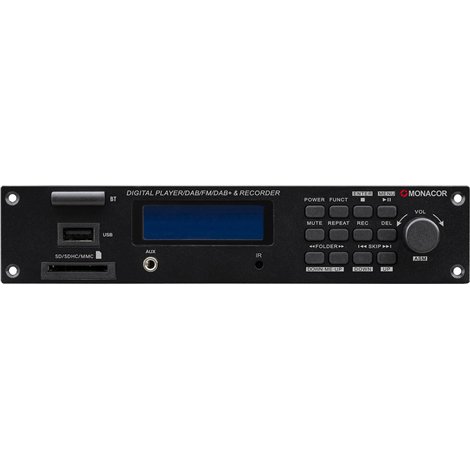

Monacor DAB+/FM RDS Tuner Built-in module with USB, SD & Bluetooth

Name: DAB+/FM RDS Tuner Built-in module with USB, SD & Bluetooth
Brand: Monacor
SKU: PA-1200DAB
Price: 239.99 EUR
Availability: InStock

New

12-Kanaals Digitale Audiomixer met Dante® & DSP - Monacor amplifiers

View larger

€ 239,99

Quantity

Brand: Monacor

Model: PA-1200DAB

Condition: New

Category: Monacor amplifiers

This versatile DAB+/FMRDStuner built-in module is the perfect upgrade for PA mixer amplifiers equipped with a module built-in slot. The module combines a flawless DAB+ digital tuner and a traditional FMtuner with RDSsupport. In addition, the built-in card immediately turns your amplifier into a complete media player thanks to the integrated Bluetooth 5.0 receiver and inputs for USB sticks and SD/SDHC cards (up to a maximum of 32 GB).

Print Product Page

Viewed products

DAB 15 COMPACT - Professional DAB+ Transmitter (15W)

Product information

Professional media upgrade: DAB /FMRDSTuner Built-in Module

With this DAB /FMRDStuner built-in module you can quickly add a wide range of modern playback options to your existing sound system. The module is specifically designed for placement in the insertion slot of professional PA mixer amplifiers. This transforms a stand-alone amplifier into a central, multifunctional sound source. Thanks to the direct power supply from the amplifier itself ( $\text{DC } 17\text{ V}$ ), no external power adapter is required, ensuring a clean and reliable installation.

Digital radio, Bluetooth 5.0 and USB/SD playback

The module offers the best of both radio worlds: noise-free digital reception via DAB and reliable analogue reception via FMincluding handy RDSstation information. Thanks to the built-in Bluetooth 5.0 technology, you can also stream music stably and wirelessly from smartphones, tablets or laptops. On the front there is a USB port and an SD/SDHC card slot (suitable for media up to 32 GB, formatted in FAT16 or FAT32). The media player effortlessly handles popular formats such as MP3 and WMA, but also supports high-quality WAV and FLAC files for superior audio quality.

Smart features for fixed installations

Reliability is crucial for professional audio installations in shops, restaurants or business premises. This built-in module is therefore equipped with a smart Auto Boot function. In the unlikely event of a power failure, the module will restart fully automatically as soon as power is restored. Thanks to the internal memory, all transmitter settings, volumes and configurations are precisely saved, so that the system functions immediately again without the need for manual intervention.

Intuitive operation and clear display

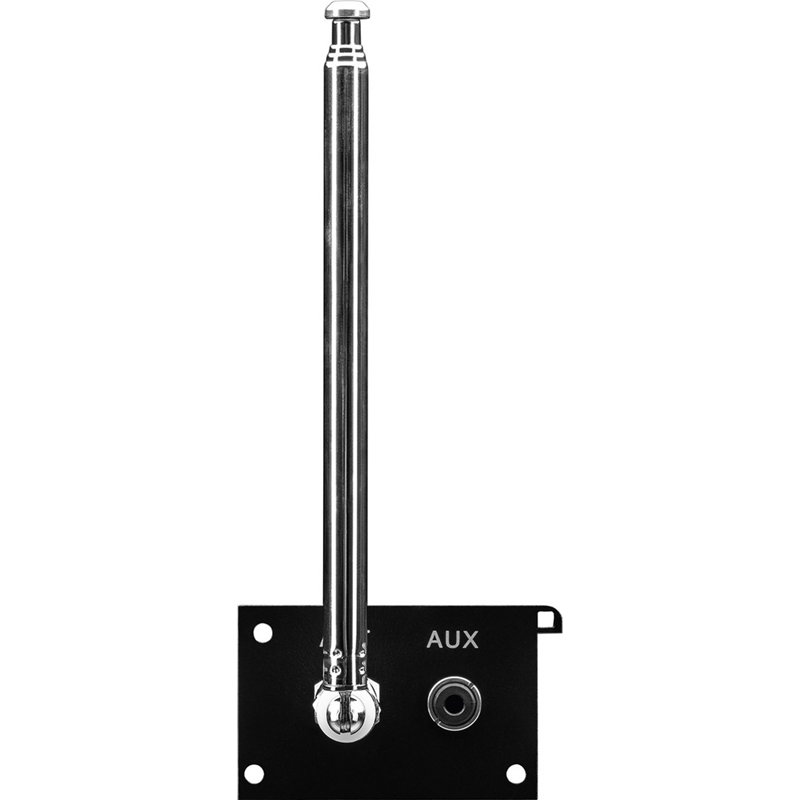

The clear, alphanumeric LC display clearly shows all relevant data, including the current station name, the file name or the ID3 tags of the music playing. With the Auto Scan function, the tuner quickly finds the strongest stations, which can then easily be stored among the 30 FMor 20 DAB preset locations. The module can be comfortably operated via the physical buttons on the front panel or via the included compact infrared remote control. On the rear there is an f-type coaxconnection for the supplied rod antenna and a balanced 3.5 mm signal output to the amplifier.

4. Technical Specifications

Property	Specification
Type product	DAB and FMRDStuner / media player built-in module
Ondersteunde media	DAB , FM, USB, SD, SDHC, MMC
Supported audio formats	MP3, WMA, WAV, FLAC
Bestandssysteem USB/SD	USB 2.0 (FAT16 / FAT32), max. 32 GB
Wireless connection	Bluetooth 5.0
Preferred channels	30x FM/ 20x DAB
Display	Alphanumeric LC display (display of file name / ID3 tag)
Voeding	DC 17 V / 180 mA (directly via the mixer amplifier)
Allowable ambient temp.	0 - 40 °C
Afmetingen (B x H x D)	195 x 40 x 76 mm
Netto Gewicht	0,424 kg (Module solo: 328 g)
Connections	1x Type F / Coaxjack (for antenna), 1x 3.5mm balanced output
Meegeleverd	Infrared remote control, detachable DAB /FMrod antenna
EAN-code	4007754430431
