Brand: Monacor
Model: PA-4500DX
Condition: New
Category: Monacor amplifiers

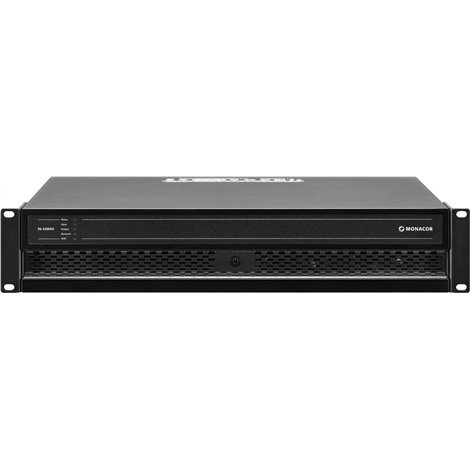

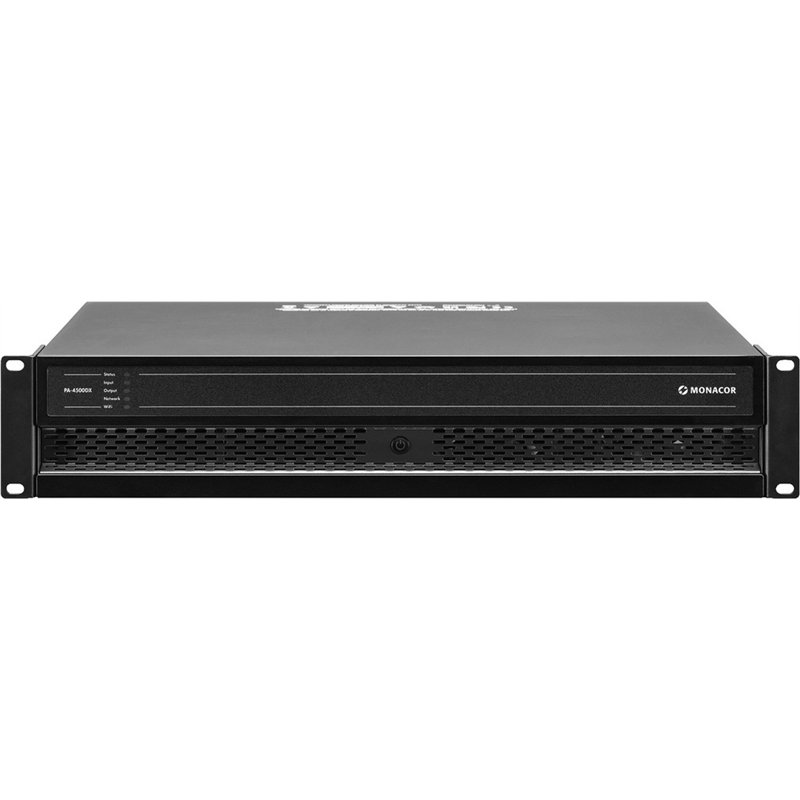

The PA-4500DX is a powerful 4-zone multi-function mixing amplifier with high-quality Class D technology, extensive DSP and professional features for general multi-room PA applications. This advanced amplifier is equipped with premium audio technology powered by PASCAL, which guarantees maximum efficiency and flawless signal processing. Thanks to the clear, built-in graphical HTML5 web interface, you can easily configure and operate the entire system via the web browser of any device (PC, Mac, iOS or Android).
For complex and demanding sound installations in multiple rooms, the PA-4500DX mixing amplifier offers the absolute benchmark in its class. This 4-zone powerhouse combines high efficiency with an impressive peak power of $2,000\text{ W}$. The heart of the amplifier is powered by globally acclaimed amplifier technology from PASCAL, which ensures extremely low distortion ($\text{THD} ) and crystal clear dynamics with a signal-to-noise ratio of more than $106\text{ dB}$. Whether it concerns background music in a hotel, public announcements in a business premises or dynamic audio in conference rooms; This amplifier delivers top performance under any load.
Complicated software packages are a thing of the past. The PA-4500DX has an integrated network connection via LAN or WLAN and a built-in web server. The graphical user interface is built entirely in modern HTML5. This means that you can directly access, configure and operate the amplifier live via a standard web browser on your smartphone, tablet, Mac or PC, regardless of the operating system. The interface is clearly laid out, making routing inputs to the different zones and adjusting volumes a piece of cake.
The internal DSP architecture provides audio engineers with all the tools needed for perfect acoustic tuning. The inputs are equipped with a parametric 5-band equalizer. On the output side, the amplifier has separate FIR filters (Finite Impulse Response), adjustable high-pass/low-pass filters, an accurate compressor/limiter and an adjustable delay per channel. With the built-in speaker matching (up to $10\text{ ms}$) and a switchable output phase, you ensure that all connected speakers work together perfectly in phase and time. For ease of installation, the system also features a built-in sine wave noise generator for system testing and a priority talkover function for public address microphones.

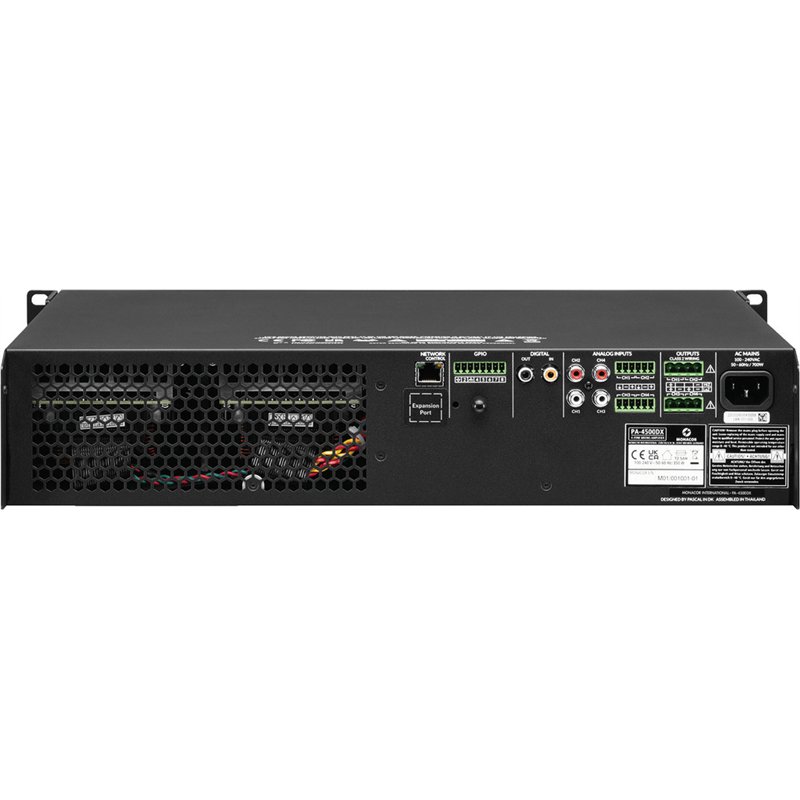

Thanks to the hybrid design, the PA-4500DX supports both low-impedance systems ($4\ \Omega$or $8\ \Omega$) as well as professional $100\text{ V}$distribution lines via robust plug-in screw terminals. On the input side you have the choice between balanced screw terminals or RCA/RCA jacks for line equipment. A smart GPIO interface enables external remote volume control and standby switching, reducing standby consumption to less than $0.5\text{ W}$. The amplifier is housed in a compact 19" metal housing of only 2 HE (Rack Units) and is electronically fully protected against all conceivable operating situations, such as overheating, short circuit and overload.
| Property | Specificatie PA-4500DX |
| Type product | 4-zone multi-function Class D mixing amplifier |
| Technologie / Processor | Class D powered by PASCAL with integrated DSP |
| Vermogen continu / RMS | 2.000 W |
| Output power at $4\ \Omega$ | $4 \times 500\text{ W}$ |
| Output power at $8\ \Omega$ | $4 \times 400\text{ W}$ |
| Uitgangsvermogen bij $100\text{ V}$ | $2 \times 1.000\text{ W}$ |
| Aantal kanalen / Zones | 5 input channels / 4 independent zones |
| Ingangsgevoeligheid | 1.2 V (Line, balanced) / 1.9 mV (Mic, balanced) |
| Signaal-ruisverhouding (S/N) | > 106 dB |
| Vervormingsfactor (THD) | |
| DSP-functies | FIR-filters, 5-bands parametrische EQ, compressor/limiter, delay, high/low-pass filter, fase-omkering, speaker matching ($10\text{ ms}$) |
| LAN (RJ45) of WLAN, grafische HTML5 webinterface via browser | |
| Extra functies | Talkover with priority routing, built-in sine noise generator |
| Securities | Short circuit, DC overload, undervoltage, overheat, overload |
| GPIO-interface | Yes, via pluggable screw terminals (volume/standby) |
| Analoge Ingangen | 4x Mic/Line via plug-in screw terminal (balanced) or RCA/Tulp |
| Digital Inputs/Outputs | 1x S/PDIF via RCA input and output |
| Speaker outputs | $4 \times\text{ laagohmig } (4/8\ \Omega)$of $2 \times\text{ zone } (100\text{ V})$via schroefklemmen |
| Power / Consumption | |
| Afmetingen / Rack-units | 484 x 89 x 322 mm / 19" montage breedte (2 HE) |
| Netto Gewicht | 7.85 kg (Gross incl. packaging: 9.3 kg) |
| EAN-code | 4007754429268 |
