The PA-8125DX is a powerful and extremely versatile 8-zone multi-function mixing amplifier with high-quality Class D technology, extensive DSP and professional features for general multi-room PA applications. This advanced 1U amplifier is equipped with premium audio technology powered by PASCAL, which guarantees maximum efficiency and flawless signal processing. Thanks to the clear, built-in graphical HTML5 web interface, you can easily configure and operate the entire system via the web browser of any device (PC, Mac, iOS or Android).

With a flexible output power of 8 x 125 W (at 4 or 8 Ohm) or 4 x 250 W (at 100 V), the matrix amplifier adapts effortlessly to any speaker configuration.

Product page Print

Product information

Ultimate multi-room control with PASCAL technology: The PA-8125DX

For complex and demanding sound installations in multiple rooms, the PA-8125DX mixing amplifier offers the absolute benchmark in its class. This 8-zone powerhouse combines high efficiency with an impressive peak power of 1,000 W. The heart of the amplifier is powered by the globally acclaimed amplifier technology of PASCAL, which ensures extremely low power consumption and crystal-clear dynamics with a signal-to-noise ratio of more than 106 dB. Whether it concerns background music in a hotel, public announcements in a business premises or dynamic audio in larger conference rooms; This amplifier delivers top performance under any load.

Intuitive management via HTML5 and network integration

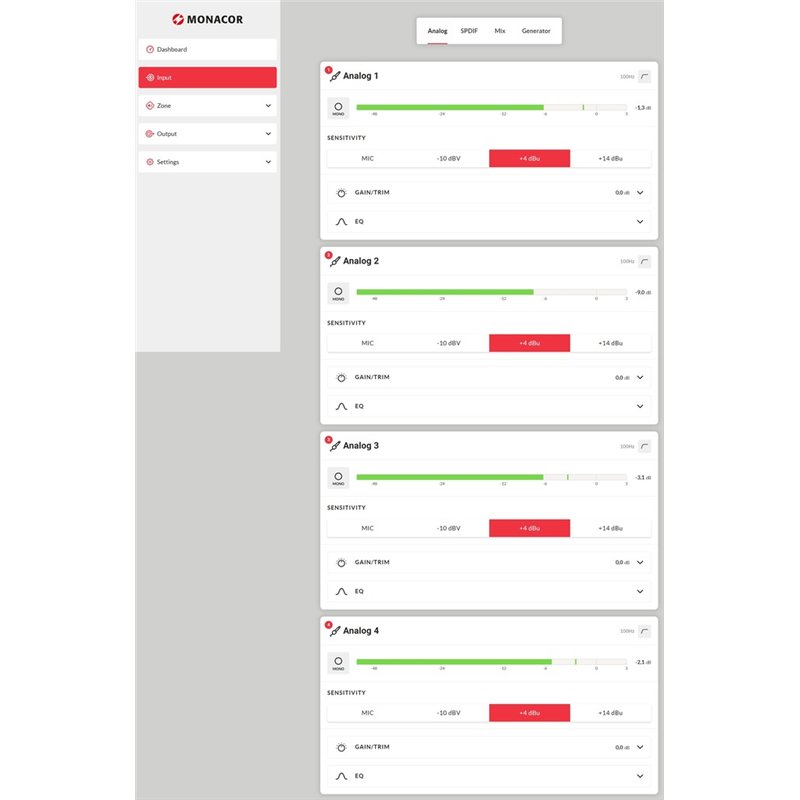

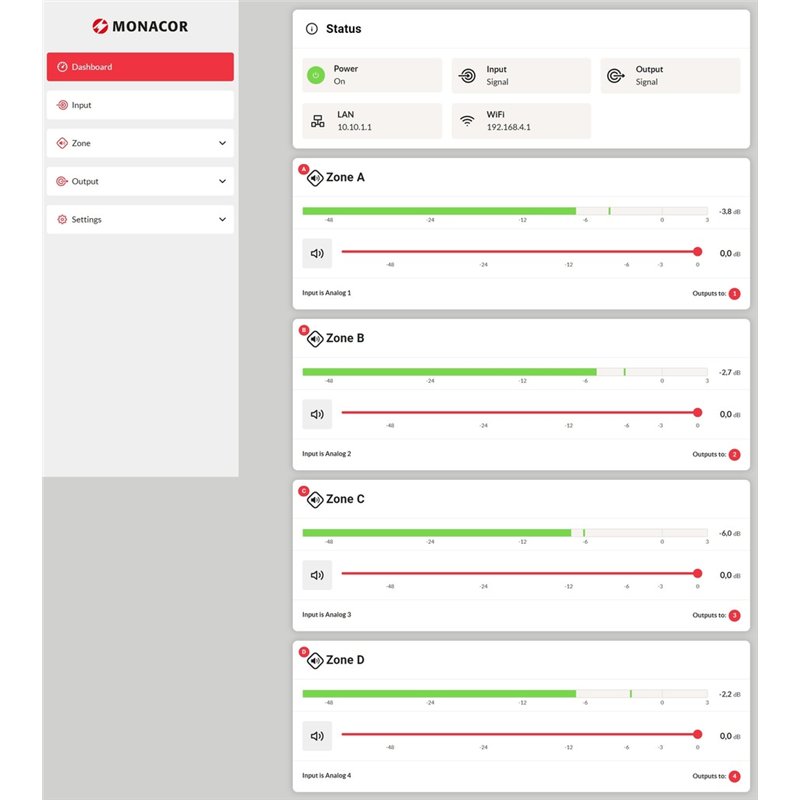

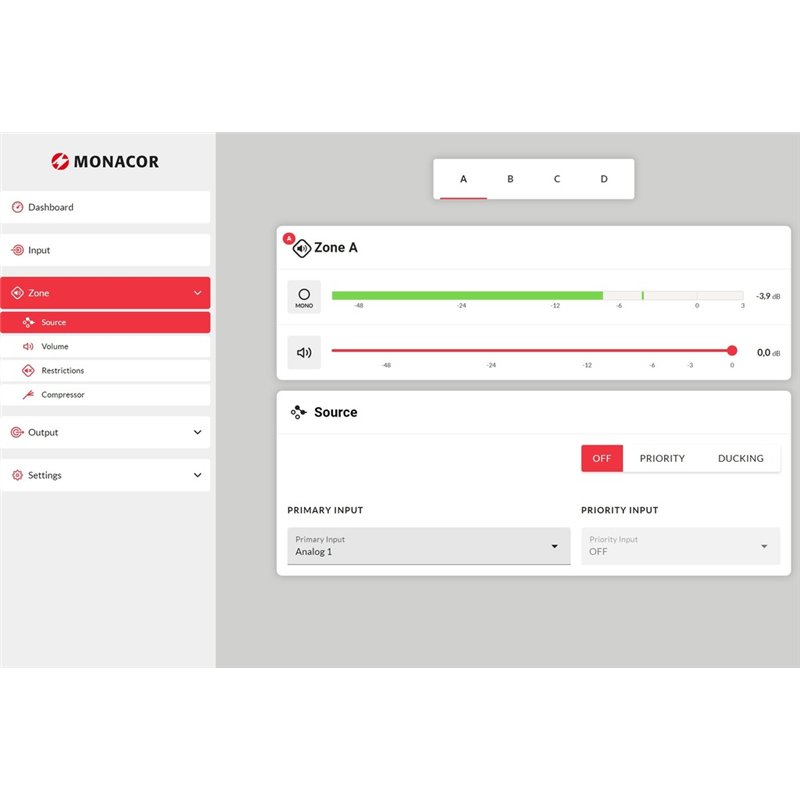

Complicated software packages are a thing of the past. The PA-8125DX has an integrated network connection via LAN or WLAN and a built-in web server. The graphical user interface is built entirely in modern HTML5. This means that you can directly access, configure and operate the amplifier live via a standard web browser on your smartphone, tablet, Mac or PC, regardless of the operating system. The interface is clearly laid out, making routing and mixing inputs to the 8 different zones and adjusting volumes a piece of cake.

High-End DSP processing and speaker matching

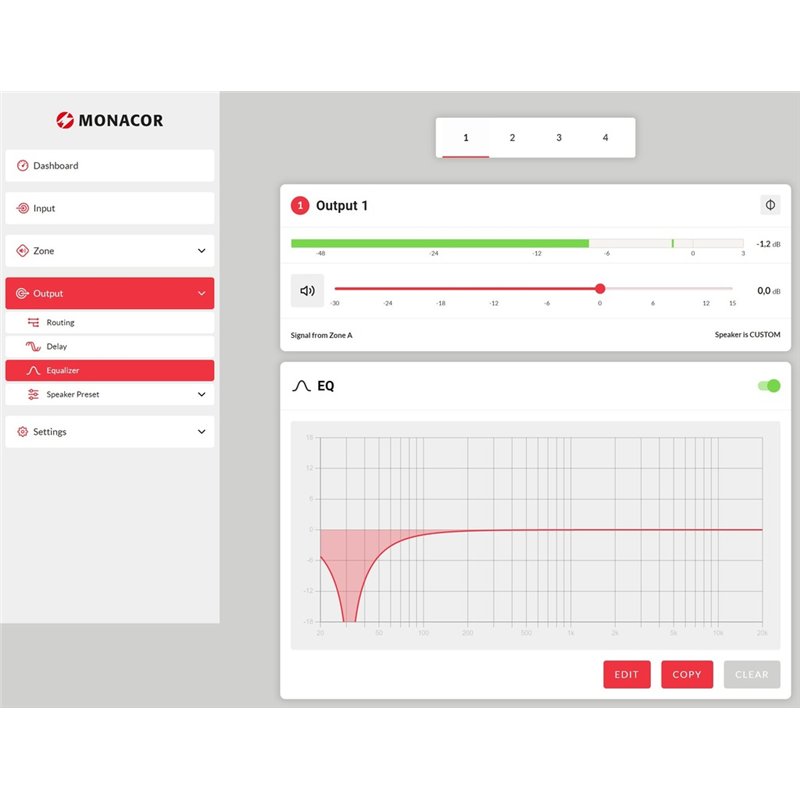

The internal DSP architecture provides audio engineers with all the tools needed for perfect acoustic tuning. The 9 input channels are equipped with a parametric 5-band equalizer. On the output side, the amplifier has separate FIR filters (Finite Impulse Response) per channel, adjustable high-pass and low-pass filters, an accurate compressor/limiter and an adjustable delay. With the built-in speaker matching (up to 10 ms) and a switchable output phase, you ensure that all connected speakers work together perfectly in phase and time. For ease of installation, the system also features a built-in sine wave noise generator for system testing and a priority talkover function for public address microphones.

Flexible configuration and industrial reliability

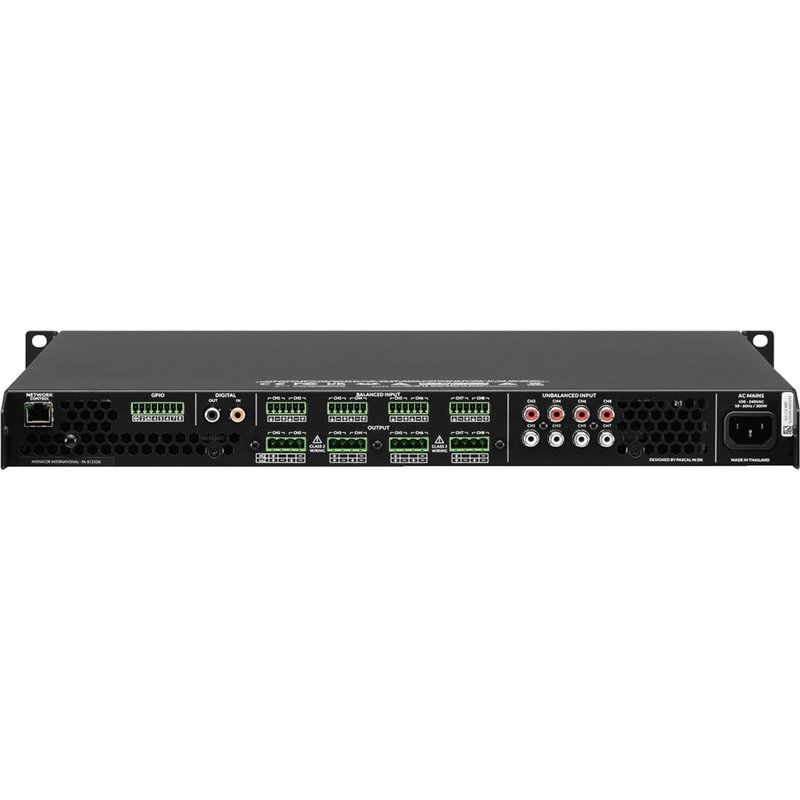

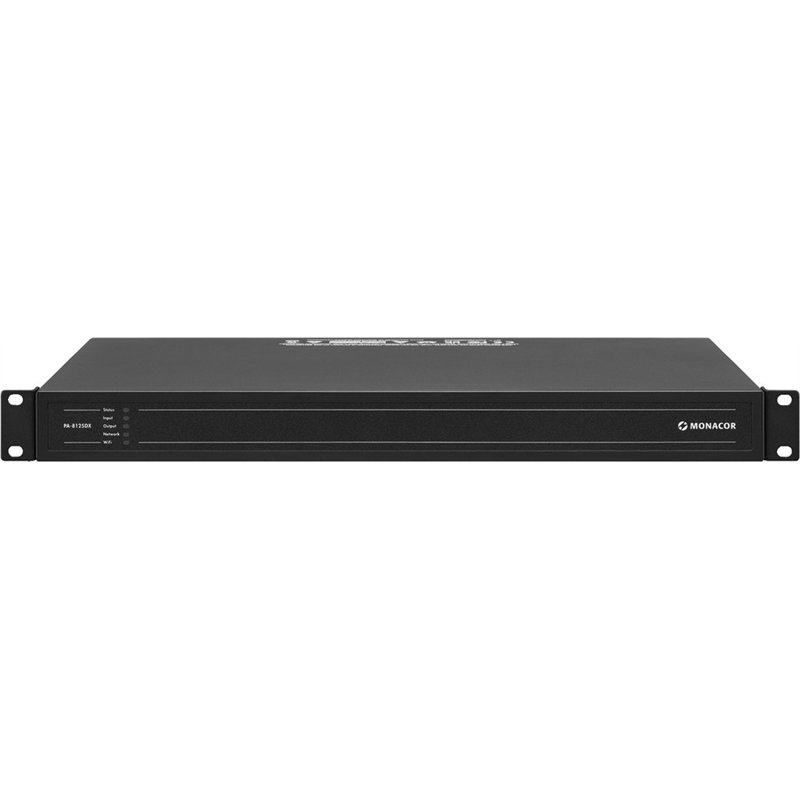

Thanks to its hybrid design, the PA-8125DX supports both low-impedance systems (4 or 8 Ohm) and professional 100 V distribution lines via robust plug-in screw terminals. On the input side you have the choice between 8 balanced screw terminals or tulip/RCA jacks for line equipment. A smart GPIO interface enables external remote volume control and standby switching, which reduces standby consumption to less than 0.5 W. The amplifier is housed in a compact 19 inch metal housing of only 1 HU (Rack Unit) and is electronically fully protected against all conceivable operating situations, such as overheating and short circuit.

4. Technical Specifications

Product type: 8-zone multi-function Class D mixing amplifier
Technology / Processor: Class D powered by PASCAL with integrated DSP
Power continuous / RMS: 1,000 W
Output power at 4 Ohm: 8 x 125 W per zone
Output power at 8 Ohm: 8 x 125 W per zone
Output power at 100 V: 4 x 250 W
Number of channels / Zones: 9 input channels / 8 independent zones
Input sensitivity: 1.2 V (Line, balanced) / 1.9 mV (Mic, balanced)
Signal-to-noise ratio (S/N): > 106 dB
Distortion factor (THD):
DSP features: FIR filters, 5-band parametric input EQ, compressor/limiter, delay, high/low-pass filter, phase inversion, speaker matching (10 ms)
Network & Control: LAN (RJ45 network connection) or WLAN, graphical HTML5 web interface via browser
Additional features: Mix inputs, talkover with priority routing, built-in sine noise generator
Protections: Short circuit, DC overload, undervoltage, overheating, overload
GPIO interface: Yes, via pluggable screw terminals (volume and standby)
Analog Inputs: 8x Mic/Line via pluggable screw terminal (balanced) or RCA/Tulip
Digital Inputs/Outputs: 1x S/PDIF via RCA input and output
Speaker outputs: 8 x low-impedance (4 or 8 Ohm) or 4 x zone (100 V) via screw terminals
Power / Consumption: ~ 100-240 V / 50-60 Hz / 195 W (at 1/8 power), Standby
Dimensions / Rack units: 484 x 45 x 320 mm / 19" width (1 HU)
Net Weight: 4.4 kg (Chassis solo: 3.8 kg / Gross incl. packaging: 5.2 kg)
EAN code: 4007754429275
